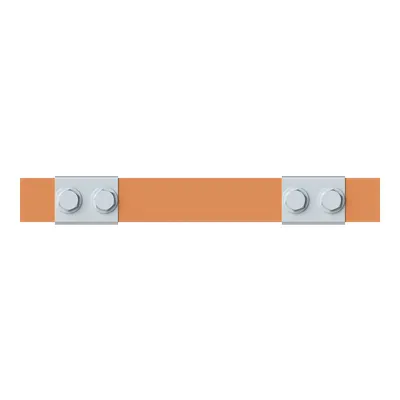

ABB 2CPX042732R9999 Busbar - 440 A, DIN 43673-1
Part Number: 2CPX042732R9999
Quick Summary
ABB 2CPX042732R9999 Busbar is a copper busbar solution designed for CombiLine modular distribution panels in industrial control cabinets. Engineers often wrestle with space constraints and ensuring the correct current rating in compact power distribution modules. This part supports CE and RoHS compliance and aligns with DIN 43673-1 while maintaining REACH documentation for responsible sourcing. With a 154 mm panel width and a 30 x 5 mm cross-section, the 440 A rated unit simplifies layout, reduces wiring, and speeds installation. As part of ABB's CombiLine family, it delivers reliable, scalable power connections for industrial automation, improving maintenance efficiency and traceability.
Product Information
Extended Description
2CPX042732R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 154 mm, rated current maximum 440 A
Rated Current (In)
440 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
154 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
1
Product Net Weight
0.453 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.518 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Copper busbar construction provides superior conductivity and thermal performance. Business Impact: Minimizes voltage drop and heat buildup, enabling stable current sharing in 440 A rated applications. Application: Ideal for CombiLine modular distribution panels in Power Management & Distribution environments, supporting robust electrical cabinet design. Feature: 1P single-pole configuration with a defined 154 mm width and 30 mm height. Business Impact: Streamlined mounting in tight control enclosures reduces footprint while preserving accessibility for maintenance. Application: Suitable for compact industrial cabinets where space is at a premium. Feature: Untreated surface finishing keeps initial cost low while enabling field-applied coatings or protective measures as needed. Business Impact: Flexible integration in varied environments, lowering upfront labor. Application: Works with customer-specific protective strategies in metal enclosures. Feature: RoHS and REACH declarations with DIN 43673-1 alignment ensure regulatory compliance. Business Impact: Simplifies procurement and auditable compliance across Europe. Application: Useful for regulated manufacturing sectors and audits. Feature: 0.453 kg unit weight and pack details support easy handling and on-site install planning. Business Impact: Reduces installation time and ergonomic risk for technicians. Application: Beneficial for assembly lines and retrofits requiring quick, predictable installation. Feature: Panel width 154 mm and 5 mm depth enable modular integration with standard CombiLine panels. Business Impact: Improves configurability and reduces design iterations. Application: Ideal for modular power distribution layouts in automation projects.
Get a Quick Quote for a ABB 2CPX042732R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042732R9999?
Enquire Now
FAQs
Follow the mounting instructions ZX2224-2259_ZX2324-2353 to secure the copper busbar within the COMBLine modular distribution panel. Ensure correct polarity and contact with rated current paths, verify panel width of 154 mm, and confirm the 1P configuration fits your enclosure layout.
The busbar is rated for 440 A. It has a width of 154 mm, height of 30 mm, and depth of 5 mm, designed for 1P configurations within CombiLine modular panels. Weight is 0.453 kg, aiding handling during installation.
Yes. It complies with RoHS as per EU Directive 2011/65/EU and Amendment 2015/863, has a REACH declaration, and includes DIN 43673-1 compatibility, with supporting EU DoC documentation for compliant procurement.
Best for CombiLine modular distribution panels in industrial power management systems, where a compact, high-current copper busbar supports reliable connections in 1P configurations and helps standardize cabinet power distribution in automation projects.
The product aligns with DIN 43673-1, is CE declared, RoHS compliant, REACH monitored, and falls under WEEE category 5 Small Equipment, supporting both B2B procurement and compliant end-of-life handling.
