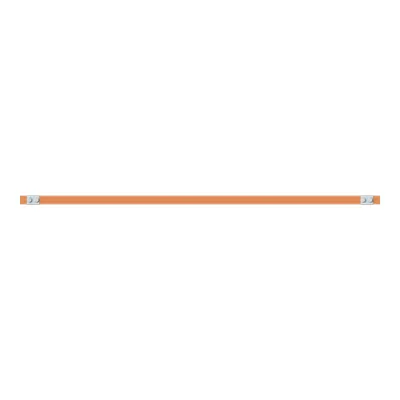

ABB 2CPX042736R9999 Copper Busbar - 440A CombiLine CE
Part Number: 2CPX042736R9999
Quick Summary
ABB 2CPX042736R9999 Copper Busbar enables modular distribution in compact control panels. Manufacturers frequently face tight panel widths while needing reliable current paths and minimal installation time. This product carries CE declarations, RoHS compliance, and REACH documentation to support regulatory, environmental, and supply-chain requirements. With a rated current of 440 A on a single 1P copper busbar, it integrates with the CombiLine modular distribution system and simplifies mounting in standard enclosures, delivering faster builds and reduced risk for panel builders and integrators. Its untreated surface and precise dimensions ensure predictable electrical performance and easier OEM installation. This makes it a reliable, scalable choice for panel builders migrating to larger DIN rail and modular installations.
Product Information
Extended Description
2CPX042736R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 5 = 1154 mm, rated current maximum 440 A
Rated Current (In)
440 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1154 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
5
Product Net Weight
1.797 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.916 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current up to 440 A is supported by a compact Copper busbar format. Business Impact: Enables higher load capacity within tight panel footprints, reducing the need for additional busbar assemblies and lowering component count. Application: Ideal for CombiLine modular distribution panels in control cabinets where space is at a premium and reliability matters. Feature: Copper busbar with untreated surface provides low electrical resistance and predictable conductivity. Business Impact: Improves energy efficiency and thermal performance, lowering heat-related losses and maintenance intervals. Application: Suitable for high-current feeder paths in industrial automation settings. Feature: Dimensions of 1154 mm width by 30 mm height and 5 mm depth optimize enclosure real estate. Business Impact: Maximizes panel density and simplifies layout planning for standard enclosure sizes. Application: Used in large modular panels where consistent section width is required. Feature: Compliance data including EU RoHS, REACH declarations, and CE labeling. Business Impact: Reduces regulatory risk and streamlines supplier documentation, supporting audits and sustainability reporting. Application: Beneficial for manufacturers targeting compliant supply chains and green manufacturing goals. Feature: Mounting and handling guidance with ZX series instructions. Business Impact: Speeds up installation, reduces field errors, and improves turnover in production lines. Application: Works with ABB mounting protocols in the CombiLine ecosystem. Feature: ETIM 8/9, eClass, and DIN 43673-1 classifications. Business Impact: Enhances accurate product categorization in procurement catalogs, improving searchability and ERP integration. Application: Compatible with digital twin and BOM systems used by panel builders and integrators. Feature: Packaging details (pack 1 piece) and weight data support logistics planning. Business Impact: Enables reliable stock and shipping estimates, minimizing delays in project timelines. Application: Useful for just-in-time manufacturing environments. Feature: Data sheet availability and mounting instructions (ZX2224-2259_ZX2324-2353). Business Impact: Provides fast access to installation guidance and technical specifications, reducing commissioning time. Application: Essential for technicians during on-site setup and commissioning.
Get a Quick Quote for a ABB 2CPX042736R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042736R9999?
Enquire Now
FAQs
Yes. The 2CPX042736R9999 is designed for ABB CombiLine modular distribution systems with guidance in mounting instructions ZX2224-2259_ZX2324-2353. It is a single-pole copper busbar with a width of 1154 mm and a height of 30 mm, making it straightforward to integrate into standard enclosures without custom fabrication. Ensure enclosure width matches the 1154 mm specification.
The busbar is rated for 440 A, meaning it can carry up to this continuous current under specified ambient and installation conditions. For panel design, you should size conductors, connectors, and busbar supports with derating factors in mind, especially in high-temperature environments. This reduces overheating risk and maintains reliability in demanding automation applications.
Absolutely. The copper busbar supports CE declarations, RoHS compliance, and REACH documentation, aligning with common European regulatory requirements for industrial control equipment. Its compact dimensions optimize space in dense layouts, while the 440 A rating ensures robust performance for high-current feeders in automation cabinets.
Verify CE conformity, RoHS compliance, and REACH declarations as documented. The product also references DIN 43673-1 and ETIM classifications for accurate cataloging, which helps ensure compatibility with your procurement and ERP workflows. WEEE category is noted for proper end-of-life handling.
Using this busbar can reduce installation time due to standard dimensions and clear mounting instructions, lowering labor costs. The high 440 A rating supports fewer parallel paths, reducing parts count and potential points of failure, while regulatory compliance minimizes audit risk and accelerates project sign-off in industrial environments.
