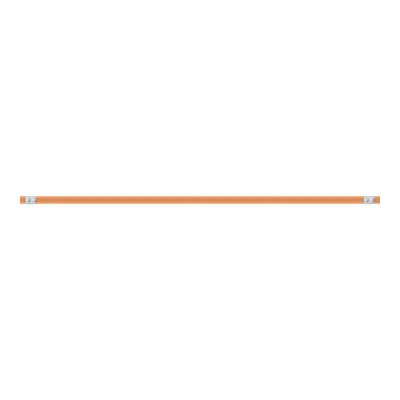

ABB 2CPX042737R9999 Busbar - DIN 43673-1
Part Number: 2CPX042737R9999
Quick Summary
ABB 2CPX042737R9999 Busbar enables copper power distribution in CombiLine modular panels. Engineers often face tight spaces, heat management challenges, and strict current ratings in modern automation rooms. This copper busbar meets CE, RoHS, and REACH requirements, with DIN 43673-1 classification and WEEE handling guidance, ensuring regulatory alignment. Its 440 A rating, compact 30 mm height, and 1404 mm width support scalable layouts without sacrificing accessibility. By combining robust mechanical design with clear ETIM and eClass classifications, it streamlines procurement and installation, reducing risk across assembly, commissioning, and ongoing maintenance. In practice, it delivers reliable performance for panel builders and system integrators pursuing efficient, compliant power distribution in industrial settings.
Product Information
Extended Description
2CPX042737R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 6 = 1404 mm, rated current maximum 440 A
Rated Current (In)
440 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1404 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
6
Product Net Weight
2.133 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.265 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated Current and Poles — 440 A, 1P. Business Impact: Provides high-current capacity within a compact footprint, enabling fewer parallel runs and reduced wiring complexity. Application: Suitable for single-pole distribution in large CombiLine panels where space is at a premium. Feature: Copper busbar Enclosure Type — Copper busbar, Untreated surface. Business Impact: Superior electrical conductivity and straightforward compatibility with copper busbar interconnects, enhancing efficiency and lowering contact resistance. Application: Ideal for modular distribution where copper interconnections drive performance. Feature: Dimensions and Weight — Product Net Width 1404 mm, Height 30 mm, Depth 5 mm; Net Weight 2.133 kg. Business Impact: Enables precise panel planning and easy handling during installation, reducing assembly time. Application: Fits wide, shallow distribution panels with strict depth constraints. Feature: Compliance and Standards — RoHS, REACH, WEEE Category 4, CE Declaration of Conformity, DIN 43673-1. Business Impact: Minimizes regulatory risk and simplifies documentation for audits and supplier qualifications. Application: Aligns with European environmental and safety programs for industrial equipment. Feature: Model and Compatibility — Flat model with 1P, CombiLine modular distribution. Business Impact: Streamlines mounting, spares management, and cross-compatibility with ABB panel systems. Application: Accelerates project timelines in new builds and retrofit installations. Feature: Additional Documentation — Mounting instructions ZX2224-2259_ZX2324-2353 and data sheets. Business Impact: Reduces commissioning time and design queries, improving first-time fix rates. Application: Helpful during field installation and service readiness. Industry Context: ETIM EC001522 Busbar, eClass V11.0 27370303, supporting consistent procurement data across ERP systems.
Get a Quick Quote for a ABB 2CPX042737R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042737R9999?
Enquire Now
FAQs
Yes. The 2CPX042737R9999 is designed for ABB CombiLine modular distribution panels and uses the standard copper busbar format. It supports straightforward mounting with the ZX2224-2259_ZX2324-2353 installation guidance, ensuring quick integration into existing panel architectures and minimal field modifications.
Key specs include rated current of 440 A, 1P poles, copper busbar enclosure, surface finishing Untreated, product net width of 1404 mm, height 30 mm, depth 5 mm, and section width 6. These figures translate to reliable current distribution in single-pole configurations within CombiLine systems.
Yes. The part features RoHS information and status aligned with EU Directive 2011/65/EU and amendments, REACH declarations indicating no substances above 0.1 mass percent, and a CE declaration of conformity for distribution panel systems. WEEE category 4 classification confirms proper disposal and recycling guidance.
This busbar excels in large, modular power distribution applications within industrial automation, particularly where space is constrained but high current is needed. It supports CombiLine panel builds, enabling efficient copper interconnections, reduced wiring complexity, and faster assembly for control cabinets and switchgear.
Expect lower maintenance due to robust copper conductivity and stable mechanical fit, reducing contact resistance over time. The 2CPX042737R9999’s documented dimensions and mounting guidance help shorten installation time, improving project ROI through faster commissioning, fewer field modifications, and easier spare-part management.
