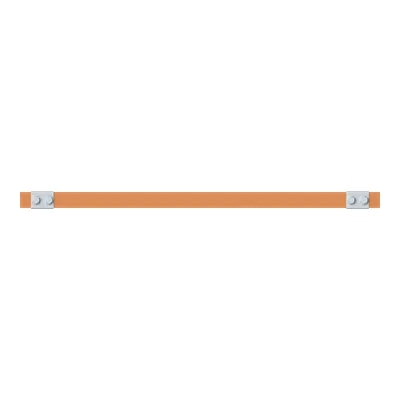

ABB 2CPX042740R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042740R9999
Quick Summary
Copper busbar for modular distribution panels delivers high-current wiring solutions in industrial control cabinets. This solution helps engineers overcome space constraints, heat buildup, and routing complexity when expanding panel installations. The part carries CE conformity, RoHS compliance, and REACH declarations, with DIN 43673-1 alignment for busbar components to ensure reliable performance in dense panel environments. As a robust, ETIM-aligned copper busbar, it supports scalable panel design and faster installation within ABB CombiLine systems, reducing assembly time and improving serviceability. With a 630 A rating and 595 mm width, it aligns with common control cabinet standards while delivering strong electrical safety margins.
Product Information
Extended Description
2CPX042740R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 595 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
595 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
3
Product Net Weight
1.971 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.226 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated Current 630 A enables safe, single-feeder distribution across a modular panel, reducing the need for parallel conductors and lowering heat generation. Business Impact: improved efficiency and reduced wiring complexity in ABB CombiLine installations. Application: suitable for high-density control cabinets in automation projects. Feature: Copper busbar with an Untreated surface provides excellent conductivity and cost efficiency. Business Impact: minimizes resistance losses and simplifies procurement. Application: used in standard panel widths with 595 mm dimension. Feature: Panel width 595 mm and Section Width 3 enable modular expansion while maintaining enclosure symmetry. Business Impact: faster on-site integration and alignment with DIN standards. Application: panel builders can design scalable distributions. Feature: Compliance with RoHS, REACH, WEEE and DIN 43673-1 ensures regulatory readiness. Business Impact: reduces risk of compliance issues and recalls. Application: industrial automation deployments across European supply chains. Feature: Net weight 1.971 kg with precise dimensions (30 mm height x 10 mm depth) supports manageable handling during installation. Business Impact: easier transport and mounting; Application: used in large-scale installations.
Get a Quick Quote for a ABB 2CPX042740R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042740R9999?
Enquire Now
FAQs
Yes. This copper busbar is designed for CombiLine modular distribution panels, matching the 595 mm panel width and 630 A rating. Installation references ZX2224-2259_ZX2324-2353 guide the mounting process for quick, reliable assembly.
Key specs include 630 A rated current, 1P, copper enclosure type, Untreated surface, 595 mm net width, 30 mm height, 10 mm depth, and a net weight of 1.971 kg.
Ideal for high-current power distribution in ABB CombiLine modular panels and other industrial control cabinet applications where space optimization and reliable copper conductivity are critical.
CE conformity, RoHS compliance, REACH declarations, and DIN 43673-1 alignment, plus WEEE considerations, ensuring regulatory readiness for European manufacturing environments.
Regulatory compliance reduces risk of recalls, while robust copper construction and modular panel compatibility shorten installation time and extend service intervals, delivering lower total cost of ownership over the panel life cycle.
