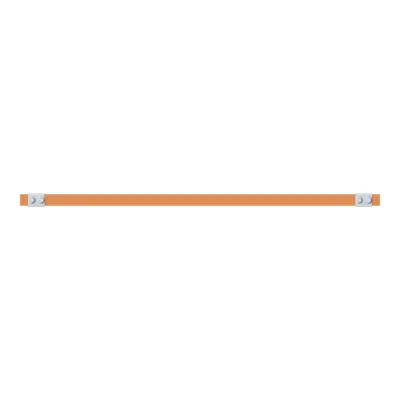

ABB 2CPX042741R9999 Busbar - 630 A, DIN 43673-1
Part Number: 2CPX042741R9999
Quick Summary
ABB 2CPX042741R9999 busbar is a copper busbar solution that enables compact, high-current distribution in CombiLine modular panels. Engineers often struggle with space constraints and rising current demands in power distribution enclosures; this busbar helps maximize panel density while maintaining reliable conductivity. It complies with CE conformity, RoHS directives, and DIN 43673-1, providing safe, regulator-approved installation and traceable material compliance. Designed for fast mounting with ZX2224-2259_ZX2324-2353 instructions, it supports scalable configurations and reduces panel assembly time, translating into lower downtime and total cost of ownership. This combination of performance, compliance, and ease of use makes it a reliable choice for panel builders and OEMs handling industrial automation.
Product Information
Extended Description
2CPX042741R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 4 = 845 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
845 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
4
Product Net Weight
2.643 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.924 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2224-2259_ZX2324-2353
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Technical features deliver measurable business impact in real-world applications. Rated Current of 630 A provides headroom for peak loads, reducing the need for oversizing and enabling more compact panel designs in CombiLine systems. The 845 mm width with 30 mm height and 10 mm depth optimizes space, simplifying layout planning and improving heat management for dense control cabinets. Copper busbar enclosure with an Untreated surface ensures excellent conductivity and straightforward fabrications while keeping costs predictable for large-scale deployments. Compliance with RoHS and DIN 43673-1, along with REACH declarations and WEEE categorization, minimizes regulatory risk and supports sustainable end-of-life planning. Mounting instructions ZX2224-2259_ZX2324-2353 streamline installation, enabling faster assembly and reduced commissioning times. ETIM and eClass classifications (EC001522, 27370303) help with accurate cataloging and procurement, while CE, CMRT, and REACH attest to overall product reliability in industrial environments. Overall, a high-current, easy-to-install copper busbar that reduces downtime, improves efficiency, and supports scalable panel design for commercial and industrial automation projects.
Get a Quick Quote for a ABB 2CPX042741R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042741R9999?
Enquire Now
FAQs
To install, follow ABB mounting instructions ZX2224-2259_ZX2324-2353 for CombiLine modular panels. Align the 845 mm wide copper busbar within the panel framework, secure with the recommended fasteners, and verify conductor clearance and insulation. The 1P, 630 A rated unit is designed for single-pole distribution, with an untreated copper enclosure ensuring reliable conductivity. Use appropriate IE specifications and confirm RoHS/DIN 43673-1 compliance during assembly to avoid rework.
Key specs include a rated current of 630 A, 1P configuration, and a copper busbar enclosure. Dimensions are 845 mm in width, 30 mm in height, and 10 mm in depth, with a section width of 4. The net weight is 2.643 kg. These attributes make it suitable for high-demand, space-constrained modular distribution in CombiLine panels while maintaining regulatory compliance (RoHS, DIN 43673-1).
Yes. The ABB 2CPX042741R9999 busbar is designed for high-current, modular distribution within CombiLine panel systems, commonly used in industrial automation and control cabinets. Its 845 mm width fits wide panel sections, and the 630 A rating supports peak loads without over‑sizing. Its copper construction provides superior conductivity, enabling reliable performance in continuous operation and demanding environments.
The product supports CE conformity, RoHS compliance under EU Directive 2011/65/EU and amendment 2015/863, and REACH registration with declared substances. It is also associated with DIN 43673-1 for busbar classification, WEEE category 4 for large equipment, and eClass/ETIM classifications. These certifications collectively ensure regulatory compliance, safe disposal, and interoperability in industrial procurement ecosystems.
The busbar reduces installation time with clear mounting instructions and a modular CombiLine interface, lowering commissioning downtime. Copper conductivity improves reliability and lowers the risk of overheating under peak loads, reducing maintenance costs. Tight dimensional fit (845 mm width, 30x10 mm profile) aids faster layout planning and scalable panel design, delivering a lower total cost of ownership for OEMs and end users.
