2CPX042861R9999
Part Number: 2CPX042861R9999
Product Information
Extended Description

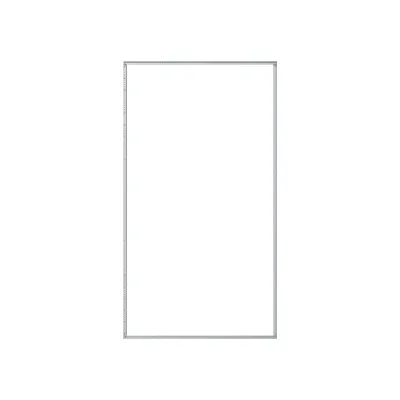

2CPX042861R9999 ABB: WR mounting frame, set not installed, field width 4, overall height 8 (12 RE) 1800 mm, includes a vertical WR profile rail, with transverse profile rail, for all standing and row switching cabinets with depths of 225 mm and over.
Model Number
Mounting rail
Number of Panel Heights
12
Enclosure Type
Slide rails
Mounting Type
Screw mounting
Surface Finishing
Galvanised
Material
Steel
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1000 mm
Product Net Height
1800 mm
Product Net Depth / Length
1800 mm
Section Width
4
Product Net Weight
6.437 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.694 kg
E-Number (Norway)
2444490
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction WR181-4101
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002518 - Profile (enclosure/cabinet)
ETIM 9
EC002518 - Profile (enclosure/cabinet)
eClass
V11.0 : 27180907
Object Classification Code
U
