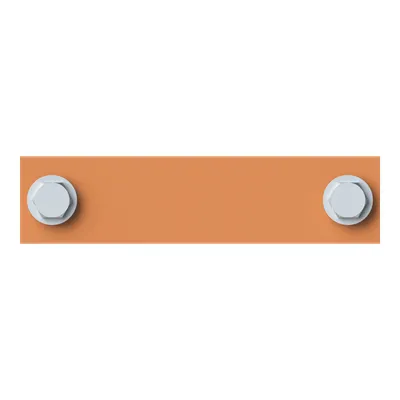

ABB 2CPX042887R9999 Busbar Connection Set - 850 A
Part Number: 2CPX042887R9999
Quick Summary
ABB 2CPX042887R9999 is a copper busbar connection set for CombiLine modular distribution panels used in electrical cabinets. Engineers often wrestle with limited space, heat management, and the need to meet strict regulatory standards when wiring high-current panel sections. This component delivers CE conformity, RoHS and REACH compliance, and DIN 43673-1 busbar compatibility to support regulatory and safety requirements. Designed for reliable, tool-friendly mounting and tight electrical contacts, it minimizes copper handling and assembly time while maintaining robust current paths. With precise dimensions of 94 mm width, 40 mm height, and 10 mm depth, and a weight of 0.658 kg, it enables compact, repeatable panel layouts and lowers total cost of ownership.
Product Information
Extended Description
2CPX042887R9999 ABB: Copper busbar connection set, CombiLine, Modular distribution panel not assembled, rated current maximum 850 A
Rated Current (In)
850 A
Number of Poles
1P
Connection Type
Cabinet / Cabinet
Enclosure Type
Copper busbar connection set
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
94 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.658 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.684 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX1182-..86 / ZX1192-..96
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000713 - Busbar coupler
ETIM 9
EC000713 - Busbar coupler
eClass
V11.0 : 27400606
Object Classification Code
U
Standards
DIN 43673-1
Feature: High-current copper busbar construction delivers a rated current of 850 A. Business impact: this provides low resistance paths, reduced temperature rise, and improved reliability in dense panel layouts. Application: ideal for CombiLine modular distribution panels in industrial cabinets. Feature: Compact 94 mm width, 40 mm height and 10 mm depth footprint enables dense stacking and straightforward routing. Business impact: minimizes space, simplifies panel design, and shortens install time. Application: perfect for cabinet-to-cabinet connections where space is at a premium. Feature: RoHS and REACH compliance with DIN 43673-1 busbar compatibility reduces regulatory risk. Business impact: streamlines supplier audits and cross-region deployments. Application: supports global manufacturing and compliance workflows. Feature: Clear mounting guidance via ZX1182-..86 and ZX1192-..96 installation references reduces errors. Business impact: lowers commissioning time and risk of improper contact satisfaction. Application: ideal for panel builders and service teams handling CombiLine installations. Feature: Certifications and classifications ETIM EC000713, eClass 27400606, and WEEE Category 5 improve cataloging and lifecycle planning. Business impact: enhances ERP integration and end-of-life considerations. Application: suitable for long-life industrial control systems. Feature: Net weight 0.658 kg and package weight 0.684 kg support easy handling and shipping. Business impact: reduces logistics cost and accelerates field deployments. Application: beneficial for retrofit projects and multi-panel deployments.
Get a Quick Quote for a ABB 2CPX042887R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042887R9999?
Enquire Now
FAQs
This busbar connection set is designed for cabinet-to-cabinet connections in CombiLine modular distribution panels. It uses a copper busbar enclosure and is specified for mounting in ABB CombiLine environments, with installation instructions ZX1182-..86 and ZX1192-..96 to guide proper alignment and secure fastenings, ensuring reliable current paths.
The unit is rated for 850 A and configured as 1P. It provides a single-pole copper busbar connection suitable for high-current distribution in compact panel layouts, enabling strong conduction paths while maintaining space efficiency in modular assemblies.
Yes. The part carries CE declarations and RoHS/REACH compliance, along with DIN 43673-1 standard alignment for busbar couplers. These certifications facilitate regulatory approvals, supplier audits, and cross-border deployments in industrial environments.
The product aligns with ETIM 8 and ETIM 9 as EC000713, eClass 27400606, and includes WEEE Category information. Additional references include DIN 43673-1 and the EU declarations of conformity, supporting accurate cataloging and lifecycle management.
With precise 94×40×10 mm dimensions, a net weight of 0.658 kg, and clear mounting guides, installation time is reduced and field retrofit is facilitated. Compliance with RoHS/REACH and the CE declaration helps minimize regulatory risks, while straightforward handling lowers labor costs and supports longer system uptime.
