ABB 2CPX042906R9999 Main Circuit Breaker - EN 61439-3
Part Number: 2CPX042906R9999
Quick Summary
ABB 2CPX042906R9999 is a main circuit breaker module designed for Tmax panels in industrial control cabinets. Engineers face tight cabinet space and the need for scalable, modular protection; this interior fitting module provides a compact 24-DIN unit footprint and a ready path for future MCCB XT2 additions. It carries EU CE conformity and is aligned with DIN EN 61439-2/3, with RoHS and REACH declarations to support global deployments. By integrating a robust Tmax 4P protection solution in a standardized enclosure, it helps reduce wiring complexity, simplify commissioning, and speed up panel builds. The design prioritizes compatibility, easy maintenance, and cost-efficient expansion for panel builders and OEMs.
Product Information
Extended Description

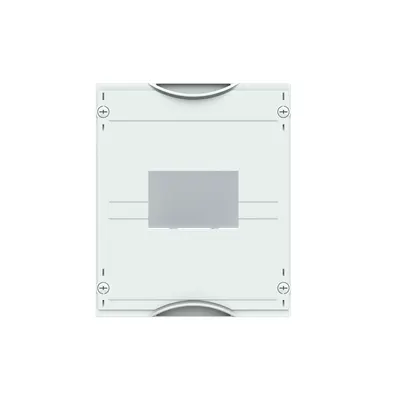

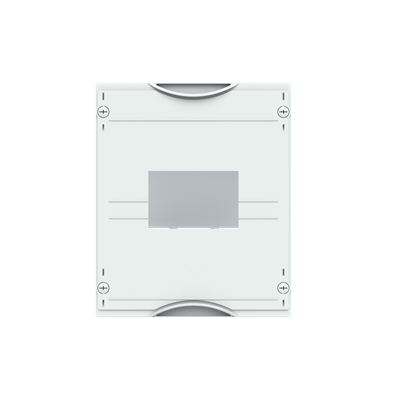

2CPX042906R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Main circuit breaker Tmax, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, , usuable width of 120 mm, unequipped for the installation of 1 MCCB XT2, for busbar system 4-pole, rated current maximum 160 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
160 A
Rated Operational Current (Ie)
160 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
XT2
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.193 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.24 kg
E-Number (Norway)
2407818
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA191T,..391T,..193T,..291T,..391T
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
