ABB 2CPX042907R9999 Main circuit breaker Tmax - DIN EN 61439-3
Part Number: 2CPX042907R9999
Quick Summary
ABB 2CPX042907R9999 is an interior fitting module for Tmax main circuit breakers in modular panels. It addresses common challenges in panel fabrication, including misalignment, space constraints, and mounting-frame compatibility. This solution carries critical certifications to reassure compliance, including DIN EN 61439-3, CE conformity, and RoHS declarations, with REACH information integrated for broader regulatory visibility. By aligning with these standards, the module helps engineers reduce risk and accelerate deployment. The design supports CombiLine modular distribution ecosystems and XT2 MCCB integrations, delivering business value through predictable performance, streamlined procurement, and easier maintenance in industrial control cabinets.
Product Information
Extended Description

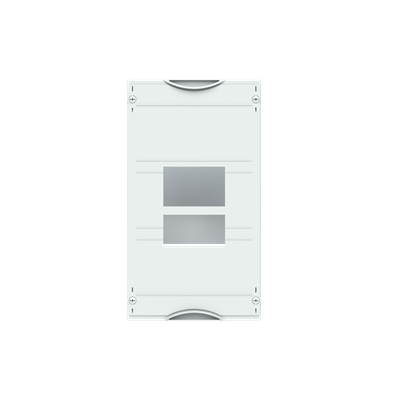

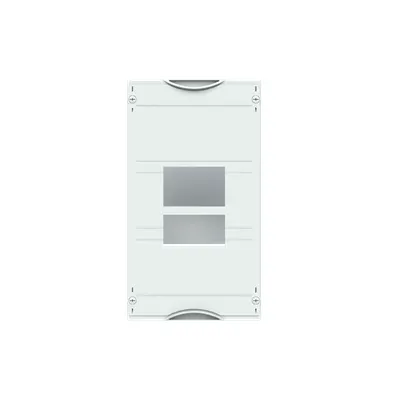

2CPX042907R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Main circuit breaker Tmax, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, , usuable width of 120 mm, unequipped for the installation of 1 MCCB XT2, for busbar system 4-pole, rated current maximum 160 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
160 A
Rated Operational Current (Ie)
160 A
Number of Poles
4P
Number of RCDs
1
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
XT2
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
36
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.456 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.514 kg
E-Number (Norway)
2407819
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA191T,..391T,..193T,..291T,..391T
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
