2CPX042959R9999
Part Number: 2CPX042959R9999
Product Information
Extended Description

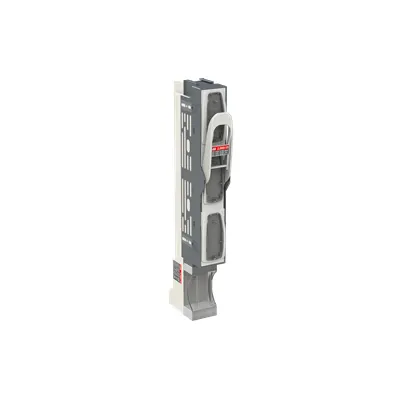

2CPX042959R9999 ABB: Unit generation InLine II ZLBM / ZHBM offers to you a best stability and highest safety for the current distribution network. Rated current from 160 A ... 630 A is possible. Highest safety for staff during use and maintanence is given. ABB offers to you the series in 3-pole variant , checked according EN / IEC 60947-3. The installation is more flexible and space redusing then before due to horinzontal and vertical mounting . As well an ensuring and safety mounting of power converter is guaranteed, and an exchange of NH- fuse inserts too. The serie is suitable for busbars with centre space of 185mm.
Suitable For
NH00
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Uninterrupted Current (Iu)
160 A
Model Number
Protection switch separator
Number of Poles
3P
Device
NH00
Enclosure Type
Protective devices
Type of Indicator
None
Material
Plastic
Color
grey
Fuse Size
NH00
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
50 mm
Product Net Height
409 mm
Product Net Depth / Length
144 mm
Product Net Weight
1.1 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.144 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001046 - In-line fuse base
ETIM 9
EC001046 - In-line fuse switch disconnector base
eClass
V11.0 : 27371402
Object Classification Code
U
