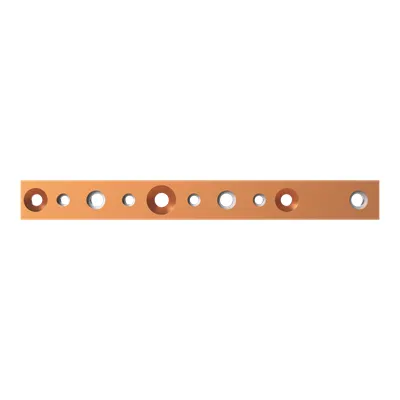

ABB 2CPX042968R9999 Copper Busbar - 630 A DIN 43673-1
Part Number: 2CPX042968R9999
Quick Summary
ABB 2CPX042968R9999 Copper Busbar is a modular busbar for CombiLine panels handling up to 630 A. Engineers often face space constraints and integration gaps when upgrading distribution panels, which this solution helps mitigate. This product carries CE conformity along with RoHS and REACH declarations to meet regulatory and sustainability goals. With DIN 43673-1 alignment and a compact 274 mm panel width, it enables efficient modular distribution and easier sourcing for panel builders and integrators.
Product Information
Extended Description
2CPX042968R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 1 = 274 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
274 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
1
Product Net Weight
0.755 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.785 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: 630 A rated current. Business Impact: Supports high-power distribution without frequent upgrading, reducing downtime and rework. Application: Suitable for single-pole, modular distribution setups in industrial panels. Feature: 274 mm panel width and 30 mm height with 10 mm depth. Business Impact: Enables compact, space-efficient installations in tight control cabinets and switchgear racks. Application: Ideal for CombiLine panel configurations where space is at a premium. Feature: Copper busbar with Untreated surface finish. Business Impact: Delivers excellent electrical conductivity and straightforward machining or finishing on-site, lowering assembly time. Application: Common in factory automation and power distribution panels. Feature: Unassembled panel compatibility. Business Impact: Reduces pre-assembly time and inventory complexity for integrators, accelerating project timelines. Application: Suitable for modular panel builders assembling on-site. Feature: RoHS and REACH declarations with EU Compliance. Business Impact: Minimizes regulatory risk and supports sustainable sourcing for EU-based projects. Application: Mandatory for EU machinery and electrical installations. Feature: DIN 43673-1 and ETIM/eClass classifications. Business Impact: Improves product discoverability and interoperability with engineering data workflows. Application: Useful for procurement catalogs and BOMs in automation projects.
Get a Quick Quote for a ABB 2CPX042968R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042968R9999?
Enquire Now
FAQs
The busbar is designed for CombiLine modular panels and comes in a 1P configuration with a 274 mm width, 30 mm height, and 10 mm depth. Rated at 630 A, it fits unassembled panel builds to streamline installation, reduce wiring complexity, and accelerate commissioning in industrial control cabinets.
Key specs include a rated current of 630 A, 1P configuration, copper busbar enclosure, and an untreated surface finish. It is intended for high-current distribution within modular panels, offering reliable conductivity and ease of integration with standard CombiLine components.
Yes. The product carries RoHS information and a REACH declaration, with EU dates indicating compliance. This ensures restrictions on hazardous substances are met and supports regulatory requirements for EU markets.
The busbar aligns with DIN 43673-1 and is classified under ETIM 8/9 (EC001522 - Busbar) and eClass V11.0 27370303. It also has a CE conformity declaration and is suitable for WEEE considerations, aiding interoperability and compliance in engineering workflows.
Product Net Weight is 0.755 kg, with Package Level 1 Gross Weight of 0.785 kg. Packaging is per pack 1 piece, simplifying inventory planning and freight calculations for project shipments.
