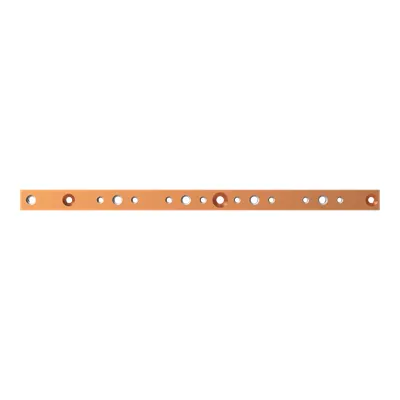

ABB 2CPX042969R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042969R9999
Quick Summary
ABB 2CPX042969R9999 Copper busbar is a modular conductor used in ABB CombiLine power distribution panels. Engineers often face delays when panels ship unassembled, requiring reliable conductors, precise fit, and straightforward installation on site. This part carries CE Declaration of Conformity, RoHS compliance, and REACH information, with DIN 43673-1 aligning it to industry busbar standards. Its 524 mm width and 30x10 mm cross-section help with efficient space planning and predictable module alignment in modular distribution architectures. Designed for 1P configurations, it delivers robust current handling and procurement consistency across European manufacturing and automation projects.
Product Information
Extended Description
2CPX042969R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 524 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
524 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
3
Product Net Weight
1.255 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.305 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Paragraph 1: Feature: The busbar is rated for up to 630 A, enabling high-load power distribution in compact panel layouts. Business Impact: This capacity reduces the need for parallel conductors and minimizes heat buildup during peak operation, boosting reliability. Application: Ideal for single-pole CombiLine modular distribution panels in industrial power management environments where space and performance matter. Paragraph 2: Feature: Copper busbar with an untreated surface. Business Impact: Copper's superior conductivity translates to lower voltage drop and stable current transfer, while an untreated surface simplifies machining and field modifications. Application: Suitable for panel builders who regularly tailor connections in off-the-shelf CombiLine installations. Paragraph 3: Feature: Precise dimensions with 524 mm product width, 30 mm height, and 10 mm depth, plus a 3 mm section width. Business Impact: Tight tolerances ensure reliable alignment with frames and connector blocks, reducing installation time and rework. Application: Directly matches the CombiLine panel footprint, enabling rapid module integration in new builds or retrofits. Paragraph 4: Feature: Regulatory compliance includes RoHS information, REACH declaration, CE declaration, and DIN 43673-1 standards. Business Impact: Regulatory alignment minimizes risk during audits and across cross-border deployments, simplifying sourcing and documentation. Application: Suitable for European facilities and any project requiring certified busbars for power distribution. Paragraph 5: Feature: Clear product metadata includes net weight of 1.255 kg and packaging details of 1 piece per unit with gross weight 1.305 kg. Business Impact: Predictable weight and packaging streamline logistics, warehousing, and on-site handling for panel builders. Application: Supports efficient procurement, stocking, and deployment in modular distribution installations.
Get a Quick Quote for a ABB 2CPX042969R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042969R9999?
Enquire Now
FAQs
To install, verify panel width compatibility of 524 mm and use the 1P, copper busbar with a 30x10 mm cross-section. As the component ships not pre-assembled, ensure proper alignment with connector blocks and mounting rails, following ABB CombiLine assembly guidelines. Plan for field adjustments and avoid clearance conflicts to ensure reliable electrical contact and thermal performance.
With a 630 A rating, the busbar supports high-load distribution without requiring oversized conductors, reducing copper usage and minimizing resistance-related losses. In single-pole configurations, maintain clean routing to minimize contact resistance and ensure consistent current sharing across modules. This improves efficiency, reduces overheating risk, and supports longer service life in demanding environments.
Yes. The busbar includes RoHS declaration and REACH information, plus a CE Declaration of Conformity. These certifications help meet EU environmental and safety requirements for panel assemblies. DIN 43673-1 alignment further ensures compatibility with standard busbar classifications in European power distribution systems, while end-of-life considerations follow WEEE guidance where applicable.
Key classifications include DIN 43673-1 for busbars, ETIM 8 EC001522 and ETIM 9 EC001522, and eClass V11.0 27370303, ensuring consistent electrical component taxonomy. The EU Declaration of Conformity supports compliant procurement in regulated markets, and WEEE considerations help with disposal planning. These standards simplify BOM accuracy and supplier onboarding for European projects.
The net weight is 1.255 kg with a packaging designation of one piece per unit and a gross weight of 1.305 kg. This predictable weight and single-piece packaging streamline handling, freight planning, and on-site logistics for panel builders. In practice, it reduces damage risk during transit and speeds up stocking, carrying, and assembly on modular distribution deployments.
