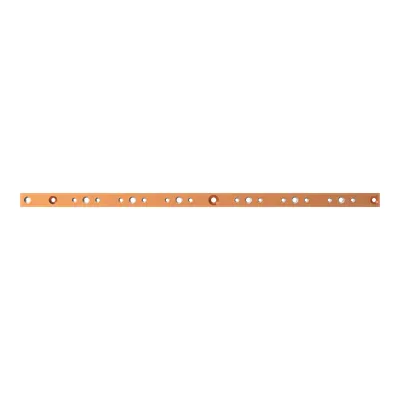

ABB 2CPX042970R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX042970R9999
Quick Summary
ABB 2CPX042970R9999 Copper Busbar is a modular distribution busbar for high‑current panel assemblies used in switchgear, motor control centers, and automated lines. Engineers upgrading feeders often confront limited mounting space, complex wiring layouts, and the challenge of maintaining reliability while meeting evolving compliance requirements. This unit offers CE conformity, RoHS compliance under EU Directive 2011/65/EU with Amendment 2015/863, and REACH declarations, all documented and traceable, while aligning with DIN 43673‑1 busbar standards for interoperability. With a rated current of 630 A and a compact 774 mm width, it enables scalable, cost‑efficient installations; the copper busbar provides low electrical resistance and robust thermal performance under continuous operation.
Product Information
Extended Description
2CPX042970R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 4 = 774 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
774 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
4
Product Net Weight
1.762 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.832 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Copper busbar construction delivers low electrical resistance and superior heat dissipation. Business Impact: reduces I²R losses, minimizes temperature rise, and extends component life in 630 A circuits. Application: ideal for ABB CombiLine modular distribution panels and other high-current switchgear. Feature: CombiLine modular distribution panel design is not shipped pre-assembled. Business Impact: enables on-site customization, faster commissioning, and easier field upgrades. Application: machine builders and panel builders needing scalable layouts. Feature: Compact footprint with 774 mm width, 30 mm height, and 10 mm depth. Business Impact: space optimization, easier cable routing, and flexible cabinet design. Application: control cabinets with restricted enclosure depth. Feature: RoHS and REACH compliance with CE conformity and DIN 43673-1 compatibility. Business Impact: reduces regulatory risk, simplifies cross-border procurement, and improves supplier transparency. Application: global manufacturing environments requiring compliant power distribution components. Feature: Rich data and classifications for procurement. Business Impact: accelerates BOM creation in ETIM and eClass systems, improves searchability. Application: procurement teams using standard product classifications.
Get a Quick Quote for a ABB 2CPX042970R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042970R9999?
Enquire Now
FAQs
Yes. The 2CPX042970R9999 is designed for CombiLine modular distribution panels and supports the 774 mm panel width with a 1P copper busbar enclosure. Its 630 A rating aligns with typical ABB modular configurations, enabling straightforward integration into existing panel architectures and scalable upgrades without redesigning the entire busbar network.
Key specs include a rated current of 630 A, 1 Pole configuration (1P), copper busbar enclosure, and an untreated copper surface. Dimensions are 774 mm wide, 30 mm high, and 10 mm deep. It is RoHS-compliant, REACH-declared, and DIN 43673-1 compliant, ensuring compatibility with standard industrial power distribution practices.
Yes. The product metadata specifies RoHS compliance under EU Directive 2011/65/EU with Amendment 2015/863 and a REACH declaration indicating no substances above 0.1 mass percentage. Documentation is provided (EU Declaration of Conformity) to support regulatory audits and global supply chain requirements.
Plan for a modular assembly approach, as the panel is described as not assembled. With a 774 mm wide footprint and 630 A rating, ensure adequate space for busbar connections, secure mounting within the enclosure, and adequate clearance for heat dissipation. The 1P configuration suits single-pole supply paths, simplifying wiring schemes in compact control cabinets.
The copper busbar offers low resistance with robust thermal performance, reducing energy losses and cooling needs in high-current environments. This translates to lower operating costs, improved uptime, and longer service life for power distribution panels. Coupled with compliant documentation, it also reduces regulatory risk and accelerates procurement cycles, supporting faster project delivery.
