ABB 2CPX042971R9999 Busbar - 630 A, CE & RoHS
Part Number: 2CPX042971R9999
Quick Summary
ABB 2CPX042971R9999 busbar is a copper busbar solution for modular distribution panels in industrial power systems. Engineers often face space constraints, thermal management challenges, and the need to scale configurations as panels evolve. This product delivers CE conformity, RoHS compliance, and REACH declarations alongside DIN 43673-1 busbar classification, supporting regulatory alignment. By integrating with ABB’s CombiLine modular systems, it enables efficient, compliant power distribution while preserving a compact footprint. For procurement and design teams, this translates to reduced risk, predictable performance, and better total cost of ownership through streamlined installation and long-term reliability.
Product Information
Extended Description

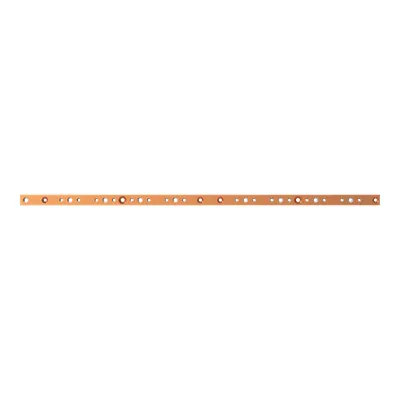

2CPX042971R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 5 = 1024 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1024 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
5
Product Net Weight
2.31 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.402 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
The rated current of 630 A provides high-power handling within a slim 1024 mm wide profile, which translates to fewer components and shorter wiring runs for system integrators. In practice, that means increased panel density and improved current sharing across single-pole configurations, supporting faster assembly in machine builders and panel shops. The 30 mm height and 10 mm depth optimize enclosure space, helping you meet strict footprint requirements without compromising thermal performance or conductivity. Copper busbars offer low impedance and excellent conductivity, reducing voltage drop and ensuring stable operation in demanding industrial environments. The untreated surface simplifies on-site fabrication and soldering, while still delivering robust mechanical integrity when paired with standard mounting accessories. Compliance with RoHS, REACH, and DIN 43673-1 reinforces regulatory confidence for global deployments and OEM supply chains. The modular, unassembled nature of CombiLine panels accelerates commissioning and enables scalable expansion as maintenance needs grow, with consistent ETIM and eClass classifications for procurement systems. Overall, this busbar supports reliable, cost-effective power distribution in factory automation and control cabinet applications.
Get a Quick Quote for a ABB 2CPX042971R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042971R9999?
Enquire Now
FAQs
When installing the 2CPX042971R9999 busbar, ensure compatibility with CombiLine modular panels that use a 1024 mm wide section. The unit is a copper busbar with a 30 mm height and 10 mm depth, designed for space-efficient layouts in unassembled panel configurations. Proper mounting hardware and alignment with adjacent busbar sections are essential to ensure stable electrical contact and mechanical security in field assemblies.
A 630 A rating supports high-current applications common in large control cabinets and machine enclosures. This enables fewer parallel paths, reducing wiring complexity while maintaining thermal headroom. In practice, you’ll see improved efficiency, lower conductor losses, and more predictable current distribution across the panel, which translates to better uptime for critical automation systems.
The busbar carries CE declarations, RoHS compliance under EU Directive 2011/65/EU and amendment 2015/863, and a REACH declaration, along with DIN 43673-1 busbar classification. These certifications reduce regulatory risk for global deployments, support sustainable manufacturing practices, and ensure compatibility with standard industry classifications used by procurement and engineering teams.
Yes. This busbar is designed for CombiLine modular distribution panels and ships as a component of the system, not as a fully assembled cabinet. Its 1024 mm width and 30x10 mm dimensions align with standard panel widths, enabling plug-in compatibility and straightforward integration with mate-able copper busbar sections, reducing assembly time and enabling scalable configurations in evolving installations.
Copper busbars offer excellent conductivity and long-term reliability with minimal maintenance, contributing to lower lifecycle costs. The unit’s weight (about 2.31 kg) and compact footprint support easier handling and installation. Combined with RoHS/REACH compliance and CE declarations, you gain regulatory confidence, reduced risk of non-compliance penalties, and a faster return on investment through improved panel efficiency and reduced troubleshooting time.
