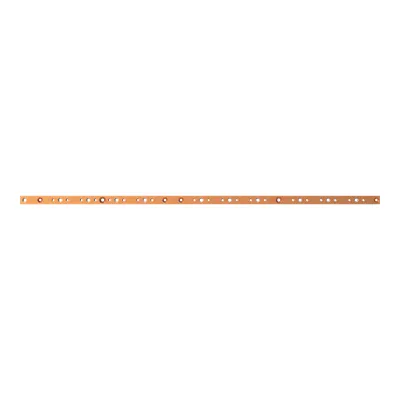

ABB 2CPX042972R9999 Copper Busbar - 630 A
Part Number: 2CPX042972R9999
Quick Summary
ABB 2CPX042972R9999 Copper Busbar is a high-current solution for modular distribution panels used in industrial automation. It delivers a reliable copper path for power distribution in CombiLine systems, enabling compact layouts without sacrificing current capacity. Engineers often confront challenges with nonstandard widths, surface finish, and regulatory documentation when upgrading panels. This busbar addresses those needs with a 630 A rating, a slim 30 mm profile, and a modular concept designed for one-pole configurations. It also comes with essential certifications and declarations, including CE conformity, RoHS compliance per EU Directive 2011/65/EU with Amendment 2015/863, and a REACH declaration. The combination supports streamlined procurement, easier panel assembly, and predictable lifecycle costs for panel builders and end users.
Product Information
Extended Description
2CPX042972R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 6 = 1274 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1274 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
6
Product Net Weight
2.889 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.005 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: High current capability with a rated current of 630 A. Business Impact: Enables reliable, single-point power distribution in dense panel layouts, reducing copper path losses and improving overall efficiency in high-loadSwitchgear environments. Application: Ideal for CombiLine modular distribution panels in automotive, process, and manufacturing facilities. Feature: 1274 mm panel width compatibility and 30 mm profile. Business Impact: Facilitates standardized installation within wide-panel assemblies while preserving enclosure space, enabling quicker assembly and lower field adjustments. Application: Used in panel builds requiring precise width alignment and compact height. Feature: Copper busbar with untreated surface. Business Impact: Delivers excellent electrical conductivity and straightforward soldering/termination while keeping manufacturing costs predictable. Application: Suitable for new builds and retrofit projects where copper reliability is critical. Feature: Comprehensive material compliance (RoHS, REACH, CE). Business Impact: Reduces regulatory risk and simplifies procurement with built-in conformity documentation, accelerating audits and customer approvals. Application: Regulatory-heavy environments in electronics, machinery, and automation. Feature: Documentation and standards alignment (DIN 43673-1, ETIM 8/9, WEEE status). Business Impact: Improves data accuracy for catalogs and MRO systems, easing maintenance planning and supplier qualification. Application: Essential for enterprise procurement and long-term asset management. Feature: Modular, single-pole design for CombiLine. Business Impact: Supports flexible, scalable layouts with fast installation and straightforward spare parts management. Application: Panel builders and OEMs integrating modular distribution solutions in control cabinets.
Get a Quick Quote for a ABB 2CPX042972R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042972R9999?
Enquire Now
FAQs
The busbar is designed for one-pole installation within CombiLine modular panels. Ensure the panel width is 1274 mm and the busbar height is 30 mm to fit the available space. Connect with standard copper termination methods and secure mounting hardware per the assembly instructions. This approach minimizes install time and reduces the risk of loose connections that can cause voltage drop and overheating.
Yes. The product carries RoHS information aligned to EU Directive 2011/65/EU with Amendment 2015/863 (dated 2024-09-03) and a REACH declaration indicating no substances above 0.1 mass percentage. It also includes a CE Declaration of Conformity for distribution panel systems, helping you meet regulatory requirements with confidence.
Key specs include a rated current of 630 A, 1P poles, copper busbar enclosure, surface finishing as Untreated, and dimensions of 1274 mm width, 30 mm height, and 10 mm depth. The net weight is 2.889 kg, and the panel width sits at 1274 mm with a section width of 6, designed for modular distribution installations.
This busbar is ideal for CombiLine modular distribution panels in industrial automation and process industries. It supports high-current distribution in compact cabinet footprints, simplifies panel building, and aligns with DIN 43673-1, ETIM classifications, and WEEE considerations, making it suitable for OEMs and maintenance teams seeking reliable, standards-compliant components.
The busbar includes a CE Declaration of Conformity, RoHS statements, and a REACH declaration. It references DIN 43673-1 for ETIM classification, ETIM 8/9 entries, and a WEEE status indicating the item is not in scope. This documentation supports audits, supplier qualification, and compliance reporting for manufacturing and maintenance teams.
