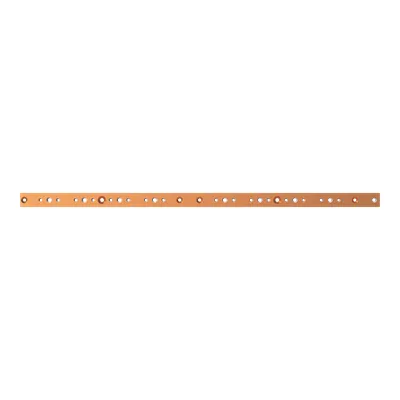

ABB 2CPX042976R9999 Copper Busbar - 850 A, DIN 43673-1
Part Number: 2CPX042976R9999
Quick Summary
Copper busbar solutions from ABB deliver high-current conductor paths for modular distribution panels in industrial automation facilities. For engineers, mounting and routing currents in tight panel spaces without overheating is a constant challenge. This product aligns with CE conformity, RoHS compliance, and DIN 43673-1 busbar standards, helping you meet regulatory and safety requirements. The combination of a robust 850 A rating with modular CombiLine panel compatibility delivers tangible business value, including faster installations, improved reliability, and easier procurement for multi-site deployments.
Product Information
Extended Description
2CPX042976R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 5 = 1024 mm, rated current maximum 850 A
Rated Current (In)
850 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1024 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Section Width
5
Product Net Weight
3.114 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.239 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: 850 A rated current provides a solid, high-capacity path for demanding machines and processes. Business Impact: Supports compact panel designs while sustaining electrical performance under load, reducing duct and component counts. Application: Ideal for high-density power distribution in ABB CombiLine modular panels within factory automation environments. Feature: Copper busbar enclosure delivers low impedance and high conductivity. Business Impact: Minimizes voltage drop and thermal rise, enabling stable operation across cycling loads. Application: Suitable for long-life power routing in multi-tier panels and critical equipment feeders. Feature: Untreated surface finishing keeps cost and lead times predictable. Business Impact: Simplifies internal processing and reduces material handling, accelerating panel assembly. Application: Best suited for internal, non-corrosive environments where conventional assembly is preferred. Feature: RoHS, REACH compliance and EU declarations ensure regulatory alignment. Business Impact: Mitigates supply chain risk and simplifies compliance audits, supporting cross-border manufacturing. Application: Essential for EU-based projects and global rollouts requiring audited materials. Feature: Precise dimensions (1024 mm width, 40 mm height, 10 mm depth) and sectioned design. Business Impact: Enables modular fit within 5-section configurations, improving layout planning and procurement. Application: Fits 5-section wide CombiLine installations with predictable space management. Feature: Net weight 3.114 kg (pack 3.239 kg) improves handling and installation ergonomics. Business Impact: Reduces on-site lifting effort and improves installation speed, minimizing downtime. Application: Useful for mid- to large-scale panel builds where weight and space are critical.
Get a Quick Quote for a ABB 2CPX042976R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042976R9999?
Enquire Now
FAQs
Begin by verifying panel compatibility with the CombiLine system and the 1024 mm width. Align the busbar with mounting rails or designated connectors, ensuring clean contact surfaces and proper torque on fasteners. Use the single-pole configuration as specified and confirm RoHS-compliant materials for regulatory traceability. Finally, perform a continuity check and insulation test to verify low impedance paths and safe operation under load.
An 850 A rating indicates the maximum continuous current the busbar can carry while maintaining acceptable temperature rise. For panel design, design margins should account for peak loads and ambient conditions. Ensure components downstream (cable sizes, connectors, and protective devices) are sized to match or exceed this current rating to preserve reliability and prevent overheating.
Yes, for environments where regulatory compliance and robust electrical routing are priorities. The copper busbar provides high conductivity, while its conformity with RoHS, REACH, and DIN 43673-1 supports reliable operation in standard industrial panels. For extremely harsh conditions, consider additional enclosure protection or coatings and verify insulation and mounting methods align with your environment and safety standards.
The busbar carries EU Declaration of Conformity, RoHS information and status, REACH declarations, and DIN 43673-1 alignment. Additional classifications include WEEE categorization and ETIM/eClass mappings, which facilitate procurement, cataloging, and cross-system integration across European and global supply chains.
The 850 A rating enables higher current capacity per panel, reducing the need for additional parallel busbar runs. This can lower material and installation time, decrease bare conductor counts, and simplify maintenance with a single, standardized component. Long-term reliability is enhanced through compliant materials and tested performance across thermal cycles, contributing to lower lifecycle costs.
