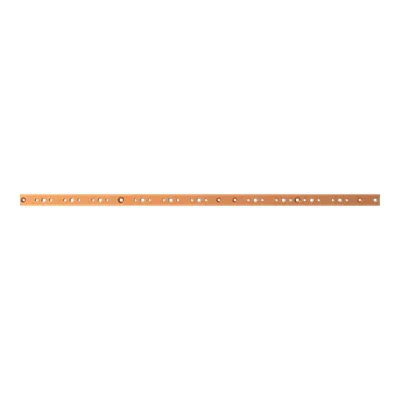

ABB 2CPX042977R9999 Copper Busbar Panel - DIN 43673-1
Part Number: 2CPX042977R9999
Quick Summary
ABB 2CPX042977R9999 copper busbar is a modular distribution panel component for high-current electrical systems. Engineers often face space constraints and reliability challenges when expanding power distribution. This solution aligns with CE conformity, RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863, and REACH declarations for sustainable operation. Designed for seamless compatibility with CombiLine modular panels, it supports fast installation, standardized assembly, and improved maintainability, delivering cost-efficient lifecycle performance while meeting stringent regulatory expectations. By integrating with ABB's CombiLine ecosystem, it offers a practical path to scalable, safe, and compliant power distribution in industrial facilities.
Product Information
Extended Description
2CPX042977R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 6 = 1274 mm, rated current maximum 850 A
Rated Current (In)
850 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1274 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Section Width
6
Product Net Weight
3.889 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.045 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature → Copper busbar construction enables high current handling with minimal voltage drop, delivering 850 A capacity for critical feeds and reducing copper losses in large distribution layouts. Business impact → Improves reliability and efficiency in high-power applications, enabling compact layouts in modular distributions. Application → Suitable for panels within CombiLine systems in manufacturing plants and data centers. Feature → Panel dimensions (1274 mm width, 40 mm height, 10 mm depth) support a compact footprint and flexible mounting. Business impact → Maximizes cabinet space, simplifies routing, and accelerates installation in retrofit projects. Application → Ideal for retrofit and new builds where space is constrained. Feature → 1P enclosure with copper busbar and untreated surface provides a rugged, easy-to-wire solution. Business impact → Reduces wiring complexity and maintenance time, lowering commissioning costs. Application → Used in single-pole high-current feeders within modular panels. Feature → Comprehensive compliance (RoHS, REACH, CE) and DIN 43673-1 standards ensure regulatory alignment and traceability. Business impact → Mitigates compliance risk and supports safe procurement. Application → Essential for regulated industrial environments needing documented conformity. Feature → Shipping and handling efficiency (3.889 kg net, 4.045 kg packed) supports logistics planning. Business impact → Lowers transport costs and simplifies onsite handling. Application → Streamlines procurement and storage for service teams in multi-site deployments.
Get a Quick Quote for a ABB 2CPX042977R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042977R9999?
Enquire Now
FAQs
This busbar is designed for ABB CombiLine modular distribution systems, matching the 1274 mm section width and 1P configuration. It supports straightforward mounting, standard wiring routes, and compatible connectors, reducing installation time and avoiding mismatches in panel builds.
The panel is rated for up to 850 A and uses a copper busbar enclosure with an untreated finish. It measures 1274 mm in width, 40 mm in height, and 10 mm in depth, with a section width of 6 and a net weight of 3.889 kg, aiding space planning and weight budgeting.
Yes. It carries a CE Declaration of Conformity, RoHS information per EU directives, and a REACH declaration indicating no substances above 0.1 mass percent. It also adheres to DIN 43673-1 and is referenced in ETIM classifications, supporting regulatory compliance in industrial environments.
Datasheets and technical information are referenced in ABB literature as the Catalogue for panel builders 2024/2025 Intro and Catalogue for wholesalers 2025 Intro. These resources provide wiring diagrams, mounting guidance, and compatibility notes for CombiLine integrations.
Product net weight is 3.889 kg with a package gross weight of 4.045 kg. Package Level 1 units are pack 1 piece, which aids inventory and logistics planning for single or multi-site deployments.
