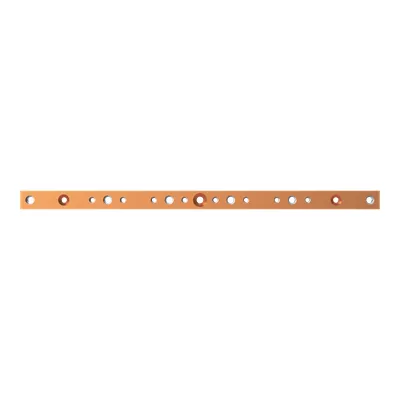

ABB 2CPX042979R9999 Busbar - DIN 43673-1
Part Number: 2CPX042979R9999
Quick Summary
ABB 2CPX042979R9999 Busbar is a copper busbar designed for ABB CombiLine modular distribution panels used in industrial power systems. Engineers often struggle with panel footprint, heat management, and compliance when upgrading copper distribution within compact switchgear. This solution supports CE conformity, RoHS compliance under EU directives, and REACH declarations, with DIN 43673-1 alignment for reliable data-driven procurement. Designed to integrate with ABB CombiLine modular panels, it reduces installation time and supports scalable power distribution for energy-intensive environments.
Product Information
Extended Description
2CPX042979R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 583 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
583 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
3
Product Net Weight
1.32 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.373 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: 630 A current rating and copper busbar construction for high-current distribution → Business Impact: Enables reliable power delivery with minimal voltage drop in compact panel widths, reducing thermal stress and downtime → Application: Use in CombiLine modular panels where space and current demand are critical. Feature: 583 mm panel width with 30 mm height and 10 mm depth (Product Net Width/Height/Depth) → Business Impact: Optimizes enclosure footprint, simplifying cabinet layouts and wiring routing in automated plants → Application: Ideal for pre-engineered modular distribution panels in manufacturing lines. Feature: Untreated surface finishing and 1P enclosure → Business Impact: Lowers processing steps and costs at installation, while allowing field-finishing customization as needed → Application: Suitable for panel builders who prefer controlled finishing in-house. Feature: Comprehensive compliance (RoHS Information/Status, REACH Declaration, CMRT, WEEE Category) → Business Impact: Ensures regulatory alignment and traceability, reducing risk in European supply chains → Application: Essential for regulated industries and cross-border manufacturing. Feature: DIN 43673-1, ETIM 8/9 EC001522 Busbar classification, and eClass V11.0 27370303 → Business Impact: Improves data quality for ERP/PDM systems and supplier catalogs → Application: Streamlines procurement and data integration for panel projects.
Get a Quick Quote for a ABB 2CPX042979R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042979R9999?
Enquire Now
FAQs
This busbar is designed for ABB CombiLine modular distribution panels and matches the 583 mm panel width with a 1P enclosure. Start by verifying the panel width, then align with the copper busbar slots, secure with standard hardware, and connect to the corresponding lugs. The 630 A rating requires proper conductor sizing and cooling considerations to maintain performance.
Key specs include a rated current of 630 A, 1P configuration, copper busbar enclosure, and an untreated surface. Dimensions are 583 mm width, 30 mm height, and 10 mm depth with a section width of 3. These factors influence current handling, heat dissipation, and fit within the CombiLine panel footprint.
Yes. The busbar is purpose-built for 630 A applications in single-pole configurations within CombiLine modular panels. Its copper construction provides excellent conductivity, while the compact 583 mm width supports dense layouts. Ensure appropriate cooling and enclosure clearances in your panel design to maintain performance at load.
The product aligns with DIN 43673-1 and carries RoHS information with EU declarations of conformity, REACH declarations, and a CMRT. WEEE classification notes the item is not within WEEE scope. These certifications support regulatory compliance across European operations and help with supplier data integrity.
The busbar’s high current rating, compact footprint, and straightforward installation reduce panel construction time and material handling. RoHS/REACH compliance minimizes regulatory risk, while DIN and ETIM/eClass data compatibility streamline procurement and maintenance records, contributing to lower total cost of ownership and faster time-to-service for power distribution panels.
