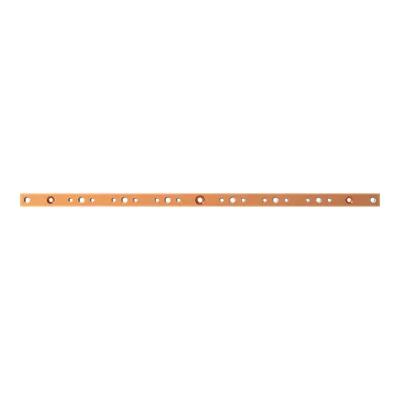

ABB 2CPX042980R9999 Busbar - 630 A Copper CombiLine
Part Number: 2CPX042980R9999
Quick Summary
Copper busbar enables ABB 2CPX042980R9999 to power modular distribution panels with high current in compact automation setups. Engineers often struggle with space constraints, assembly complexity, and meeting safety standards in high-current panels. Key certifications include EU CE conformity for distribution systems, RoHS compliance with the 2011/65/EU directive and 2015/863 amendment, and DIN 43673-1 busbar alignment. Designed for panel builders and industrial automation teams, it supports compliant, faster assembly, reduced downtime, and predictable lifecycle costs. The product's 833 mm width, 30 mm height, and 10 mm depth with a 1P single-pole design align with standard CombiLine modules. RoHS/REACH declarations and an untreated surface aid procurement and maintenance planning. This translates to measurable reliability and cost efficiency in production environments.
Product Information
Extended Description
2CPX042980R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 4 = 833 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
833 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
4
Product Net Weight
1.899 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.975 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
630 A rated current provides a robust copper path for demanding industrial loads, maintaining low impedance across critical distribution points. This high current capability reduces the need for parallel conductors and lowers heat rise, delivering tangible cost and reliability improvements for modular panels using CombiLine. 833 mm wide, 30 mm high, and 10 mm deep, the busbar fits standard CombiLine panel footprints and supports a clean, compact layout. With a 4-section width, it aligns to the panel width designation and simplifies field routing of single-pole circuits. Flat model profile with 1P design ensures straightforward mounting and a predictable connection interface. This reduces assembly time and minimizes the risk of misalignment during panel assembly. Untreated copper surface accepts common termination methods and can be brazed or soldered as needed. This flexibility helps on-site customization while preserving current-carrying capacity. RoHS Information and RoHS Status indicate EU compliance with directive 2011/65/EU and amendment 2015/863; REACH Declaration confirms no substances over 0.1 mass%. DIN 43673-1 alignment and ETIM/eClass classifications support procurement data integrity and interoperability. WEEE Category shows Product Not in WEEE Scope, simplifying end-of-life planning in facilities. Pack 1 piece with a gross weight of 1.975 kg aids logistics and warehouse planning, while a product net weight of 1.899 kg informs shipment calculations. Designed for compatibility with ABB CombiLine modular distribution panels not assembled, it enables faster field integration and standardized installation practices. Engineers can expect predictable performance, reduced downtime, and easier maintenance planning across automation environments.
Get a Quick Quote for a ABB 2CPX042980R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042980R9999?
Enquire Now
FAQs
The ABB 2CPX042980R9999 busbar uses a flat 1P copper profile with a width of 833 mm, height of 30 mm, and depth of 10 mm, designed for CombiLine modular panels not assembled. Plan mounting to align with standard frame tolerances and ensure compatible connectors. Verify termination method compatibility with untreated copper surfaces and provide adequate clearance for heat dissipation in high-current paths.
This busbar carries a 630 A rated current, delivering a low-impedance copper path for single-pole distribution. The 833 mm width and 30x10 mm cross-section suit compact panel layouts, enabling reliable current sharing in modular distribution assemblies without resorting to parallel conductors in many applications.
Yes. The product carries RoHS information and status under EU Directive 2011/65/EU and Amendment 2015/863, with RoHS Date 20240903. It includes a REACH Declaration indicating no substances exceeding 0.1 mass percentage. These declarations support EU procurement compliance and sustainability targets in manufacturing environments.
The busbar aligns with DIN 43673-1 for busbars and is classified in ETIM 8/9 (EC001522 - Busbar) and eClass V11.0 27370303, with an Object Classification Code of U. These standards enhance data interoperability with ERP and procurement systems, ensuring accurate cataloging and supplier comparisons.
Package Level 1 units are ‘pack 1 piece’ with a gross weight of 1.975 kg and a product net weight of 1.899 kg. These details aid logistics planning, warehousing, and shipment calculations, supporting accurate lead times and reduced handling costs for high-current panel components.
