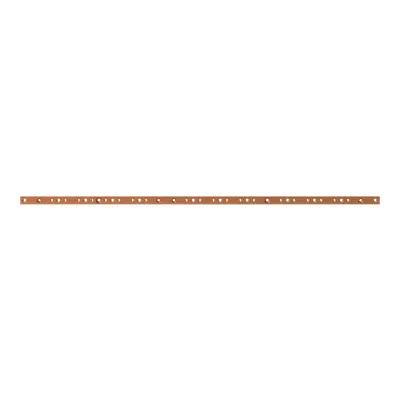

ABB 2CPX042982R9999 Power Busbar - DIN 43673-1
Part Number: 2CPX042982R9999
Quick Summary
ABB 2CPX042982R9999 is a copper busbar solution designed for modular distribution panels in industrial power distribution. It helps engineers avoid misfit components and overheating in high current panel installations. CE conformity, RoHS compliance under EU Directives 2011/65/EU and 2015/863, and DIN 43673-1 certification ensure regulatory alignment in demanding environments. REACH declarations, CMRT and WEEE categorization simplify supplier qualification and support sustainable procurement across facilities. Designed for ABB CombiLine compatibility, its 1333 mm width and 630 A rating enable fast installation and predictable lifecycle costs. Additionally, this design simplifies procurement by allowing a single SKU to cover multiple projects.
Product Information
Extended Description
2CPX042982R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 6 = 1333 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1333 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
6
Product Net Weight
3.026 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.147 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Copper busbar construction minimizes resistive losses, delivering reliable current handling with lower heat generation in continuous operation. This ABB model is rated for 630 A and spans a 1333 mm width with a 30 mm profile, enabling dense, scalable panel layouts in industrial installations. For field installation, the 1P configuration and copper enclosure simplify mounting, reduce wiring complexity, and improve fault diagnosis. The flat model and untreated surface finishing support quick machining, straightforward cutting, and practical assembly in pre-wired sub-panels. Design compatibility with CombiLine modular distribution panels means faster validation during supplier approvals and lower change orders across projects. Engineers can expect tight tolerances and repeatable assembly outcomes, even when scaling from a single panel to multi-branch distributions. Compliance and sustainability are built in: EU CE Declaration, RoHS and REACH documentation help meet regulatory and corporate social responsibility requirements. DIN 43673-1 standards ensure ETIM classification and cross-compatibility with global procurement catalogs. WEEE categorization places it clearly in the appropriate disposal stream, simplifying end-of-life planning and supplier due diligence. Logistics are straightforward, with a compact, unitized package ready to ship and install without rework. Package Level 1 gross weight of 3.147 kg aligns with standard handling, palletization, and freight planning. Product net weight is 3.026 kg, supporting precise BOMs, inventory control, and consistent performance across assemblies. Field teams benefit from ABB’s CombiLine compatibility, which minimizes adaptation errors during integration and reduces commissioning time. High current performance, robust copper construction, and a clearly defined 1333 mm width lower total cost of ownership over the system lifecycle. As with copper busbars, ensure surface protection and periodic inspection to maximize longevity in harsh industrial environments.
Get a Quick Quote for a ABB 2CPX042982R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042982R9999?
Enquire Now
FAQs
ABB 2CPX042982R9999 is designed to be compatible with ABB CombiLine modular distribution panels. The 1P copper busbar format, 1333 mm section width, and 30 mm height fit standard panel footprints used in many power distribution racks, reducing setup time and lowering risk of misfit components during installation and testing.
Key specifications include rated current of 630 A, 1P poles, copper enclosure, surface finishing untreated, product net width 1333 mm, height 30 mm, depth 10 mm. The component is RoHS and REACH compliant with DIN 43673-1 standard, CE conformity, and WEEE categorization, ensuring regulatory compliance and compatibility with ETIM and eClass classifications.
Yes. The busbar carries CE declarations and RoHS information under EU directives, REACH declarations, and CMRT documentation. It aligns with DIN 43673-1, ETIM 8/9 classifications, and eClass V11.0, helping procurement teams meet regulatory requirements and maintain robust supplier data for catalogs and compliance reporting.
Installation considerations include protecting the untreated copper surface, verifying dimensions against panel cutouts, and accounting for weight (net 3.026 kg; gross 3.147 kg) in handling plans. The 1333 mm width facilitates repeatable mounting across modules, and the 1P configuration reduces wiring complexity while preserving current integrity.
Specifying this busbar can lower lifecycle costs through reliable high current performance, reduced risk of misfit installations, and faster commissioning due to known compatibility with CombiLine panels. The documented RoHS/REACH and DIN standards also simplify supplier qualification and enable traceable sustainability reporting during procurement and project handover.
