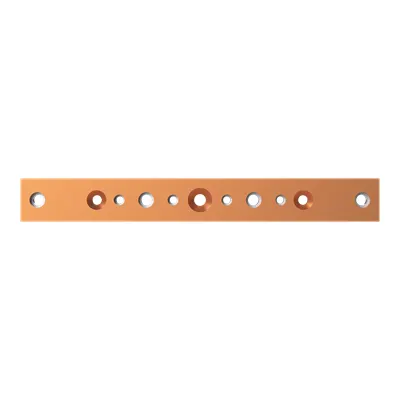

ABB 2CPX042983R9999 Copper Busbar - 850 A CombiLine
Part Number: 2CPX042983R9999
Quick Summary
Copper busbar for ABB 2CPX042983R9999 enables reliable high‑current distribution in modular CombiLine panels. Engineers often struggle with space constraints and current ratings; this busbar provides a robust 850 A capacity in a compact form. This solution aligns with CE conformity, RoHS compliance, REACH declarations, and DIN 43673-1 standards, supporting safe, compliant installs. By combining a lightweight copper busbar with a modular panel approach, it reduces wiring complexity while boosting installation efficiency. For integrators and procurement teams, the result is faster assembly, fewer spare parts, and predictable performance across ABB CombiLine systems.
Product Information
Extended Description
2CPX042983R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 2 = 333 mm, rated current maximum 850 A
Rated Current (In)
850 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
333 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Section Width
2
Product Net Weight
1.122 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.167 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current of 850 A. Business impact: Enables high-load distribution within a single feeder, reducing the need for multiple parallel conductors and simplifying protective device coordination. Application: main feeders in CombiLine modular distribution panels and other ABB power architectures. This directly improves system reliability and reduces panel footprint in compact control rooms. Feature: 1P copper busbar with an untreated surface. Business impact: copper’s low resistivity delivers efficient current transfer, while the untreated surface supports flexible installation practices and future surface treatments if required. Application: fits modular panel builds where surface finishing can be tailored to installation needs. Feature: compact dimensions, 333 mm width x 40 mm height x 10 mm depth; Section Width 2. Business impact: enables dense, space-saving layouts without compromising current capability, boosting cabinet density and reducing enclosure size. Application: panel builders designing space-constrained automation and power-distribution enclosures. Feature: weight 1.122 kg (product net); packaging 1.167 kg. Business impact: easier handling, quicker installation, and lower logistics costs for a массово distributed manufacturing environment. Application: field and workshop assembly where weight and handling time matter. Feature: regulatory compliance (RoHS, REACH, WEEE) and certifications (CE Declaration of Conformity, DIN 43673-1, ETIM 8/9, eClass). Business impact: reduces risk, accelerates procurement through standardized data, and ensures interoperability with BOMs and ERP systems. Application: global supply chains and multi-site deployments demanding auditable compliance. Feature: data sheets and technical information available for panel builders. Business impact: supports faster design iterations and fewer reworks by providing clear integration guidance. Application: engineering offices and distribution panel manufacturers seeking reliable, documented components.
Get a Quick Quote for a ABB 2CPX042983R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042983R9999?
Enquire Now
FAQs
The 2CPX042983R9999 is designed for modular CombiLine distribution panels. It arrives as a Copper busbar component that is intended to be integrated within the panel framework during assembly. Ensure correct alignment with the panel width (333 mm) and secure with compatible clamps and fasteners per the ABB data sheet. Confirm 850 A rating is suitable for the feeder load and verify protection devices are sized accordingly. Follow standard safety procedures and use appropriate PPE during installation.
Key specifications include rated current of 850 A, 1P configuration, copper busbar construction with an untreated surface, and dimensions of 333 mm width by 40 mm height by 10 mm depth. These parameters inform panel layout, conductor sizing, and protective device coordination in centralized power distribution within CombiLine systems.
Yes. The 333 mm wide, 40 mm high, 10 mm deep profile supports compact panel designs, enabling higher panel density without sacrificing current capability. The 850 A rating provides a robust single–feeder solution, reducing the need for parallel conductors and simplifying wiring schemes in space-limited cabinets.
The busbar carries CE conformity, RoHS information and status, REACH declaration, and DIN 43673-1 standard, with ETIM 8/9 and eClass classifications. WEEE considerations are noted, and the product is aligned with ABB’s CombiLine system requirements, ensuring regulatory compliance and procurement interoperability.
The 850 A rating supports reduced panel footprint and fewer parallel feeders, saving material and installation time. Lighter weight (1.122 kg) simplifies handling, while regulatory compliance minimizes risk and warranty concerns. Availability of datasheets accelerates design cycles, reducing time-to-production in automated manufacturing environments.
