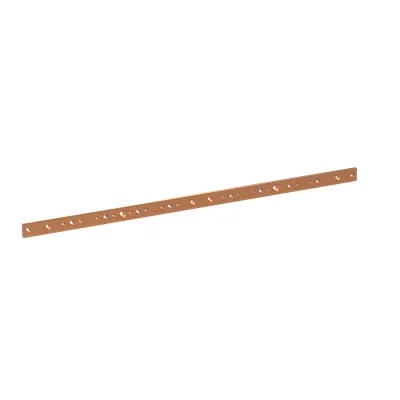

ABB 2CPX042986R9999 Copper busbar - 850 A (CombiLine)
Part Number: 2CPX042986R9999
Quick Summary
Copper busbar enables high-current power distribution in CombiLine modular panels for industrial install bases. Engineers often struggle with bulky conductors and limited space in switchgear, which slows assembly and increases risk of poor connections. This ABB unit supports up to 850 A in a compact 1083 mm wide, 40 mm high module, with a 10 mm depth and 5-section panel compatibility. It carries CE marking, RoHS compliance, and a REACH declaration, providing regulatory assurance for critical electrical installations. For panel builders and integrators, the combination of standardized dimensions and clear documentation translates to faster commissioning, lower assembly rework, and more predictable thermal and electrical performance across diverse environments. Secondary benefits include robust availability of datasheets and compatibility with the CombiLine ecosystem.
Product Information
Extended Description
2CPX042986R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 5 = 1083 mm, rated current maximum 850 A
Rated Current (In)
850 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1083 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Section Width
5
Product Net Weight
3.297 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.429 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated for 850 A in a single-pole copper busbar. Business Impact: Enables high-load distribution with reduced conductor complexity and lower voltage drop, boosting overall system efficiency. Application: Ideal for CombiLine modular panels in demanding industrial installations, reducing wiring density and maintenance costs. Long-tail keywords: high current busbar, 850 A copper busbar, single-pole busbar. Feature: Panel integration with 1083 mm width, 40 mm height, 10 mm depth and 5-section compatibility. Business Impact: Supports standardized layouts and faster engineering cycles, cutting design time and error potential. Application: Panel builders deploying modular power distribution with consistent footprints across assemblies. Long-tail keywords: CombiLine panel compatibility, modular distribution footprint, panel width standardization. Feature: Surface finishing is Untreated. Business Impact: Offers cost-effective material availability and simpler sourcing, with the option to apply protective coatings in harsh environments. Application: Suitable for enclosed installations where enclosure protection is provided. Long-tail keywords: untreated copper busbar, surface finishing option, enclosure-ready busbar. Feature: Compliance and documentation—RoHS, REACH, CE, EU Declaration of Conformity, DIN standard references. Business Impact: Reduces regulatory risk, speeds audit readiness, and simplifies certification workflows. Application: Required for regulated industrial deployments and supplier qualification programs. Long-tail keywords: RoHS compliance, REACH declaration, European CE conformity. Feature: Weight and packaging data—Product Net Weight 3.297 kg; Packaged 3.429 kg. Business Impact: Facilitates handling, transport planning, and on-site installation scheduling. Application: Logistics planning for panel builders and distributors. Long-tail keywords: transportable busbar, shipping weight, packaging details.
Get a Quick Quote for a ABB 2CPX042986R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042986R9999?
Enquire Now
FAQs
The busbar is designed for CombiLine modular panels with a panel width of 1083 mm and a 1P copper busbar configuration. Its 40 mm height and 10 mm depth align with standard CombiLine sectioning, enabling straightforward drop-in installation and consistent electrical performance across modules.
Key specs include rated current of 850 A, single-pole (1P) configuration, copper busbar enclosure, and untreated surface finishing. Dimensions are 1083 mm width, 40 mm height, and 10 mm depth. These parameters support high-current distribution while maintaining a compact footprint.
Yes. The product carries RoHS information and status in line with EU Directive 2011/65/EU plus Amendment 2015/863, a REACH declaration, and a CE Declaration of Conformity. These certifications support regulatory compliance for regulated industrial installations and supplier qualification.
The product aligns with DIN 43673-1, ETIM classifications (EC001522 for Busbar in ETIM 8/9), and eClass 27370303. It is also documented under WEEE category and EU Conformity, aiding cross-border procurement and technical validation.
Plan for a 1083 mm panel width and 5-section alignment in the CombiLine system. Handle the 3.297 kg net weight and prepare for an untreated copper surface requiring enclosure protection in corrosive environments. Ensure compatibility with the panel footprint, fastening hardware, and thermal management practices for reliable operation.
