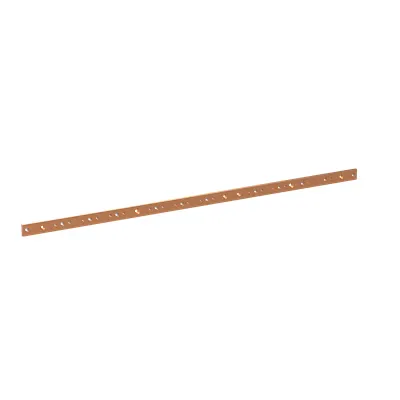

ABB 2CPX042987R9999 Copper Busbar - CombiLine N DIN43673
Part Number: 2CPX042987R9999
Quick Summary
ABB 2CPX042987R9999 Copper Busbar enables compact power distribution for modular CombiLine panels in demanding industrial environments. When sourcing for panel systems, engineers often face fitment gaps, long lead times, and uncertain RoHS/REACH compliance. This product carries CE conformity, RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863, and REACH declarations, supporting safer, compliant installations. With a rated current of 850 A and a compact 40 mm x 1333 mm footprint, it streamlines procurement and installation, while ensuring reliability in high-power distribution. Its modular design supports quick field modifications, minimizes panel size changes, and reduces total cost of ownership by cutting downtime.
Product Information
Extended Description
2CPX042987R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 6 = 1333 mm, rated current maximum 850 A
Rated Current (In)
850 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1333 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Section Width
6
Product Net Weight
4.072 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.235 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature → Business Impact → Application: The 850 A rated current and single-pole copper busbar establish a robust foundation for primary distribution in ABB’s CombiLine modular panels. This simplifies feed-through design, reduces the number of parallel conductors, and improves thermal performance, helping avoid hotspots and unplanned downtime. Application: ideal for high-load automation installations where a compact, reliable power path is required within a 1333 mm-wide panel footprint. The copper construction delivers low impedance current transfer, improving efficiency in continuous operation and enabling simpler heat management in dense panel stacks. Application: suitable for control and power buses in automation cells where space is at a premium and reliability is non-negotiable.
Get a Quick Quote for a ABB 2CPX042987R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042987R9999?
Enquire Now
FAQs
The busbar is designed for direct integration into ABB CombiLine modular panels. With a 1333 mm panel width and a 40 mm height profile, it aligns with standard rail spacing and mounting studs. Ensure the panel clearance accommodates the 10 mm depth, and verify RoHS/CE declarations are current before field assembly. Use appropriate protective coatings if environmental conditions require additional corrosion resistance.
Key specs include a rated current of 850 A for a single-pole copper busbar, dimensions of 40 mm x 1333 mm x 10 mm, and a net width of 1333 mm. Surface finishing is untreated, allowing field customization, while RoHS and REACH compliance are documented. These figures support high-power distribution in automation environments while maintaining manageable physical footprint.
Yes. The 850 A rating, copper construction, and 1P configuration make it well-suited for high-current feeder connections in CombiLine modular panels. Its slim 40 mm height and 10 mm depth help fit dense panel layouts, reducing enclosure size and improving serviceability. It’s ideal for automation cells requiring reliable current transfer with predictable thermal behavior over extended operation.
The busbar supports CE conformity, RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863, and REACH declarations. WEEE categorization places it outside WEEE scope, and DIN 43673-1 alignment appears in the external classifications. This combination helps customers meet EU regulatory requirements and maintain auditable product documentation.
By reducing the number of feed-throughs and enabling a compact, modular installation, maintenance downtime is minimized and system reliability improves. The 850 A rating supports fewer parallel paths, lowering material complexity and potential failure points. Regulatory compliance reduces risk during audits, and the physical dimensions simplify logistics and field handling, contributing to a lower total cost of ownership over the system life cycle.
