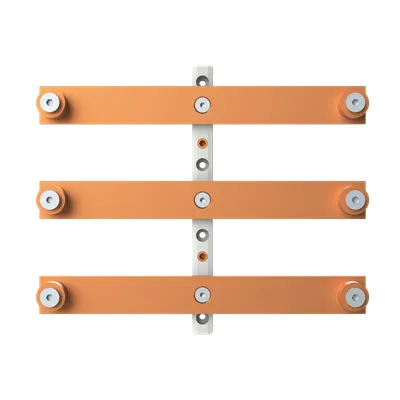

ABB 2CPX042991R9999 Copper Busbar Connection Set - RoHS
Part Number: 2CPX042991R9999
Quick Summary
Copper busbar connection set by ABB 2CPX042991R9999 enables reliable power distribution in industrial enclosure panels. Engineers often face challenges with heat buildup, loose contacts, and misaligned current paths that lead to downtime. This solution carries CE marking, RoHS compliance, REACH declarations, and WEEE categorization, ensuring audit-ready regulatory alignment and simplifying supply-chain oversight. With ABB's engineering-grade copper busbars and clearly defined mounting instructions, you gain predictable performance and safer installations. The product supports modern panel builders and industrial automation projects, delivering cost savings through reduced maintenance, improved thermal management, and faster commissioning.
Product Information
Extended Description
2CPX042991R9999 ABB: Copper busbar connection set
Enclosure Type
Copper busbar connection set
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f7d9ef4b-3ea5-4edf-b0e3-1a38a03c51c5 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Product Net Width
343.5 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
5.313 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.526 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBD152 / 252 / 352
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Feature: Copper busbar construction provides low contact resistance and high current-carrying capacity. Business impact: Reduces thermal rise and energy losses, extending service life in distribution panels. Application: Ideal for ABB CombiLine N distribution panels and other industrial enclosures in automation projects. Feature: RoHS and REACH compliance ensures regulatory readiness. Business impact: Simplifies audits and reduces supply-chain risk. Application: Suitable for European installations with strict environmental requirements. Feature: Precise dimensions and weight (343.5 mm width, 40 mm height, 10 mm depth; 5.313 kg) enable accurate space planning. Business impact: Improves cabinet layout accuracy and reduces over-specification. Application: Supports large equipment wiring in control cabinets. Feature: Mounting instructions MBD152/252/352 streamline installation. Business impact: Reduces field errors and accelerates commissioning. Application: Compatible with standard ABB mounting practices across panel projects. Feature: WEEE Category 4 Large Equipment classification and CMRT/SCIP references simplify lifecycle management. Business impact: Enhances end-of-life planning and supplier disclosures. Application: Critical for lifecycle management in manufacturing facilities. Feature: ETIM 8/9 classifications and eClass codes ensure precise procurement and cataloging. Business impact: Improves ERP, BOM accuracy, and e-procurement workflows. Application: Seamless integration into modern procurement processes for industrial panels.
Get a Quick Quote for a ABB 2CPX042991R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX042991R9999?
Enquire Now
FAQs
Ensure mounting on flat, clean surfaces using Mounting Instructions MBD152/252/352, verify required clearances, and align with existing CombiLine N or compatible panels. Check the 343.5 mm width against cabinet aperture and confirm support for 5.313 kg weight. Use recommended fasteners and adhere to specified torque to maintain reliable connections.
Copper busbar construction delivers low contact resistance and robust heat dissipation, reducing thermal rise and voltage drop under heavy load. This translates to higher reliability, longer service life, and reduced maintenance in automation panels and control cabinets.
Yes. RoHS information confirms compliance with EU Directive 2011/65/EU and Amendment 2015/863; REACH declaration indicates no substances above 0.1 mass%; WEEE categorization places the product in Large Equipment, aiding end-of-life handling. These certifications support regulatory audits in European facilities.
The product includes SCIP entries and CMRT documentation, facilitating conflict minerals reporting and supplier disclosures. This enables compliant sourcing, traceability, and easier risk assessments across manufacturing sites.
Product Net Width 343.5 mm, Net Height 40 mm, Net Depth 10 mm, and Net Weight 5.313 kg. Use these figures for cabinet layout, BOMs, and procurement specs to ensure fit and accurate stocking. Package Weight is 5.526 kg for logistics planning.
