ABB 2CPX043412R9999 Main circuit breaker Tmax - DIN EN 61439
Part Number: 2CPX043412R9999
Quick Summary
ABB 2CPX043412R9999 is a main circuit breaker interior module designed for CombiLine panel systems. When space is tight, engineers struggle with fitment and clean alignment of MCCBs inside compact enclosures. This solution conforms to DIN EN 61439-3 and DIN EN 61439-2, with CE marking, RoHS and REACH declarations for safe, compliant installations. It supports a 400 A, 4P Tmax protection scheme in a 250 mm wide, 450 mm high cabinet with a 225 mm built-in depth, offering predictable installation geometry. For panel builders, automation projects, and service teams, it delivers reliable protection with scalable 36 DIN positions and XT5 compatibility, delivering faster commissioning and improved maintenance planning.
Product Information
Extended Description

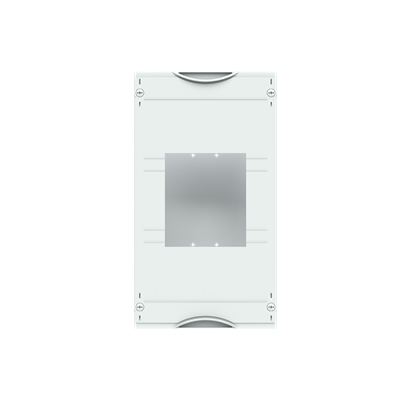

2CPX043412R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, , usuable width of 250 mm, unequipped for the installation of 1 MCCB XT5, for busbar system 4-pole, rated current maximum 400 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
400 A
Rated Operational Current (Ie)
400 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
XT5
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
36
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
1.44 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.498 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA192XT / MBA292XT / MBA198XT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
