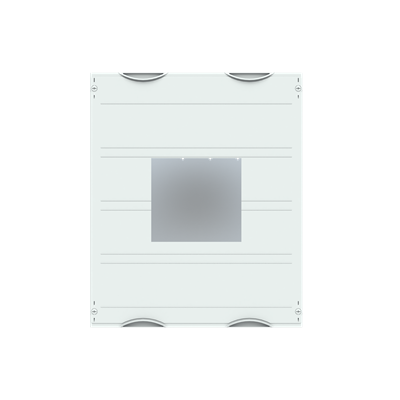

ABB 2CPX043414R9999 Main Circuit Breaker Tmax - 4P 800A
Part Number: 2CPX043414R9999
Quick Summary
ABB 2CPX043414R9999 is a main circuit breaker module for CombiLine interiors in 96 DIN places. Users often struggle integrating Tmax MCCBs into compact cabinets while preserving accessibility and serviceability. This product meets CE and RoHS compliance and supports DIN EN 61439-3/2 for safe, reliable operation. With 800 A rating and 4 poles, it guarantees robust protection for industrial power distributions while simplifying installation. Our design supports 96 DIN Place Units, interior mounting WR frames, and easy access for maintenance. Customers benefit from reduced cabinet depth constraints and standardized modular assembly, speeding commissioning and reducing lifecycle costs. This combination supports efficient spare parts management and uptime in challenging industrial environments.
Product Information
Extended Description
2CPX043414R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 500 mm, unequipped for the installation of 1 MCCB XT6, for busbar system 4-pole, rated current maximum 800 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
800 A
Rated Operational Current (Ie)
800 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
XT6
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
96
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
225 mm
Section Width
2
Product Net Weight
3.569 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.712 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA192XT / MBA292XT / MBA198XT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 4-pole XT6 device integrated with Tmax main circuit breaker. Business Impact: High-current protection with precise trip characteristics reduces fault duration and equipment damage. Application: Suitable for large industrial distribution cabinets and grid units up to 400 V and 800 A. Feature: Interior fitting module designed for CombiLine with 600 mm grid unit and 500 mm panel width. Business Impact: Optimizes space, enabling denser wiring and easier access to connections. Application: Ideal for 600 mm cabinet depth in 96 DIN units. Feature: Enclosure Mounting Frame WR with 90-degree closure and protective cover in light grey (RAL 7035). Business Impact: Improves installation speed and serviceability while maintaining a clean, compliant cabinet appearance. Application: Quick retrofits and standardized assembly in manufacturing lines. Feature: RoHS and REACH compliance with CE declarations. Business Impact: Regulatory risk mitigation and smoother procurement for regulated projects. Application: European facilities requiring traceable material compliance. Feature: 96 DIN Place Units and 500 mm panel width with 225 mm built-in depth. Business Impact: Predictable scalability and modularity, reducing design complexity and lead times. Application: Panel builders and integrators benefit from repeatable configurations and faster commissioning.
Get a Quick Quote for a ABB 2CPX043414R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX043414R9999?
Enquire Now
FAQs
Installation starts with selecting the WR enclosure frame and 96 DIN unit layout for a 500 mm panel width. Mount the XT6 device inside the interior fitting module, align the 4-pole terminals with the busbar system, and secure using the 90-degree closure. Refer to MBA192XT/MBA292XT/MBA198XT mounting instructions for proper cable routing and accessibility during maintenance.
This unit operates up to 400 V with a rated current of 800 A and uses a 4-pole configuration. It contains no switches, designed for a Tmax main circuit breaker within a CombiLine interior fitting module. Ensure your panel supports a 600 mm grid unit, 500 mm width, and 225 mm built-in depth to optimize protection, safety, and long-term reliability.
Yes. It is designed for large-scale distributions in industrial environments, offering robust protection for 3-phase systems up to 400 V. The 96 DIN place capacity and 500 mm width enable dense layouts, while the WR frame ensures mounting stability. Its compatibility with Tmax MCCBs and the CombiLine system supports streamlined cabinet design and maintenance workflows.
The module complies with CE and RoHS requirements and adheres to DIN EN 61439-3/2 standards for switchgear assemblies. REACH declarations confirm absence of substances above 0.1% mass percentage, and WEEE considerations classify the unit appropriately for end-of-life handling. These certifications reduce compliance risk across European projects.
The interior fitting design with a 4P XT6 device simplifies inspection and troubleshooting, accelerating routine maintenance. The 96 DIN placement and standardized WR frame support faster commissioning, lower installation costs, and easier spare-part management. Overall, you gain improved uptime, reduced total cost of ownership, and consistent performance across multiple cabinets.
