ABB 2CPX043416R9999 Main Circuit Breaker - DIN EN 61439-3
Part Number: 2CPX043416R9999
Quick Summary
The 2CPX043416R9999 main circuit breaker provides reliable protection for Tmax-based modular distribution panels in industrial switchgear. Design engineers often struggle with space constraints, modular integration, and ensuring long-term compliance across evolving standards. It aligns with DIN EN 61439-3 and DIN EN 61439-2, carries CE conformity, and meets RoHS/REACH requirements for sustainable panel design. For panel builders and maintenance teams, this module reduces assembly time and risk while enabling scalable, compliant protection.
Product Information
Extended Description

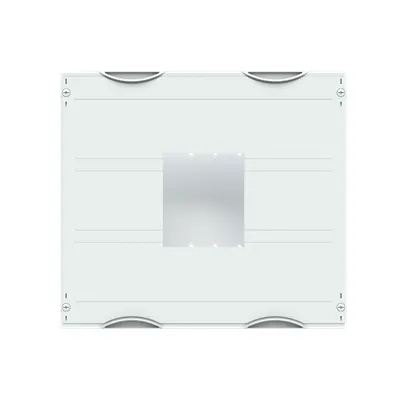

2CPX043416R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Main circuit breaker Tmax, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 500 mm, unequipped for the installation of 1 MCCB XT5, for busbar system 4-pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Rated Operational Current (Ie)
630 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
XT5
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
225 mm
Section Width
2
Product Net Weight
4.214 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.383 kg
E-Number (Norway)
2405144
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA192XT / MBA292XT / MBA198XT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Interior fitting module for Tmax main circuit protection delivers a compact, scalable solution that fits 72 DIN place units within a 500 mm width and 450 mm height. Business impact: maximizes cabinet density while preserving serviceability and future expandability in CombiLine panels. Application: ideal for modular distribution panels where a 4P 630 A MCCB is required but space is at a premium. The enclosure uses a WR mounting frame and a 90-degree press-and-turn closure to simplify installation and commissioning, reducing field time and potential alignment errors. Color and material choices (light grey plastic) support clean-room style maintenance and consistent aesthetics in control rooms. RoHS and REACH compliance, along with CE declarations, ensure regulatory alignment across global sites, while ETIM and eClass classifications support accurate product categorization in procurement systems. This configuration emphasizes compatibility with busbar systems and modular expansions, minimizing redesign costs when system load grows.
