ABB 2CPX043420R9999 Main Circuit Breaker Tmax - DIN EN 61439-3
Part Number: 2CPX043420R9999
Quick Summary
ABB 2CPX043420R9999 is a main circuit breaker module designed for panel builders and cabinet integrations. Engineers often struggle with space constraints and compatibility between enclosures and protection devices. This interior fitting module aligns with DIN EN 61439-3 and DIN EN 61439-2, while meeting CE, RoHS, and REACH requirements, ensuring safe installation and long-term reliability. With 4 poles and a rated current of 160 A (Ie 250 A) in a 36 DIN unit footprint, it fits standard CombiLine configurations and offers scalable protection for modern control panels. The XT2 device mounting option and a busbar-ready enclosure support faster deployment and easier maintenance, delivering clear business value through efficient panel design and reduced downtime.
Product Information
Extended Description

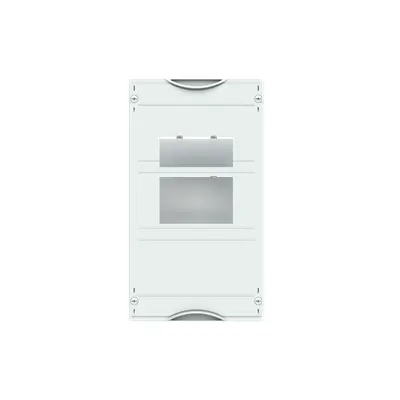

2CPX043420R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, , usuable width of 120 mm, unequipped for the installation of 1 MCCB XT2, for busbar system 4-pole, rated current maximum 160 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
160 A
Rated Operational Current (Ie)
250 A
Number of Poles
4P
Number of RCDs
1
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
XT2
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
36
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.309 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.361 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The 4P 160 A MCCB built into the Tmax interior fitting module delivers robust fault protection without compromising panel space, enabling compact but capable control cabinets. This translates to higher system availability in manufacturing lines and data centers where space is at a premium. Application-wise, it suits 400 V distribution panels in industrial automation, where DIN 436 place units and CombiLine configurations are the norm. Feature → Business Impact → Application: The enclosure is designed for an ETIM-compliant, WR or EDF mounting frame, and the unit is ready for XT2 integration. This reduces installation time and ensures reliable busbar connections, especially in modular panel lines and retrofit projects. Feature → Business Impact → Application: RoHS and REACH declarations paired with CE conformity give you streamlined compliance, lowering risk during audits and accelerating procurement cycles for regulated industries. Feature → Business Impact → Application: The module’s interior fitting design and 90-degree closure improve thermal performance and ease of service, supporting predictable maintenance schedules and lower lifecycle costs in continuous-process environments. Feature → Business Impact → Application: With 36 DIN place units and a 250 mm width by 450 mm height footprint, engineers can plan future expansion without reconfiguring the entire panel, enabling scalable protection for growing systems.
Get a Quick Quote for a ABB 2CPX043420R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX043420R9999?
Enquire Now
FAQs
The 2CPX043420R9999 is designed as an interior fitting module for CombiLine enclosures, featuring a 36 DIN unit footprint (DIN place units) and a 4P MCCB platform. It supports the XT2 device option and comes in a WR/EDF mounting frame configuration, enabling straightforward integration into standard cabinet builds. It does not include devices, so XT2 or other protection modules must be mounted separately.
Key specifications include a maximum operational voltage of 400 V, nominal current I n of 160 A, and rated operational current I e of 250 A. The device is a 4-pole configuration with 1 RCD, designed for 400 V distribution panels and CombiLine interiors. It is intended for applications requiring reliable overload and short-circuit protection within Tmax families and 4P protections.
Yes, it is suitable for 400 V industrial distribution panels. It occupies a 36 DIN unit footprint with 250 mm width and 450 mm height, and a built-in depth of 200 mm, making it compatible with standard 200 mm cabinet depths. This supports compact panel design while preserving service accessibility and safe clearance for busbars and wiring.
The module adheres to DIN EN 61439-2 and DIN EN 61439-3 standards, and carries CE conformity. RoHS compliance is confirmed under EU Directive 2011/65/EU with Amendment 2015/863, and REACH declarations are provided. WEEE considerations place the product within typical European electronics handling guidance. These certifications streamline regulatory audits and supplier qualification processes.
The XT2-compatible interior fitting design enables quick device replacement or upgrade, reducing downtime during maintenance. The robust Tmax protection and 400 V rating support long service life in demanding environments, while RoHS/REACH compliance mitigates material substitution risk. Together with space-efficient DIN rail compatibility and industry-standard dimensions, the module helps lower lifecycle costs and improve ROI through predictable maintenance and faster commissioning.
