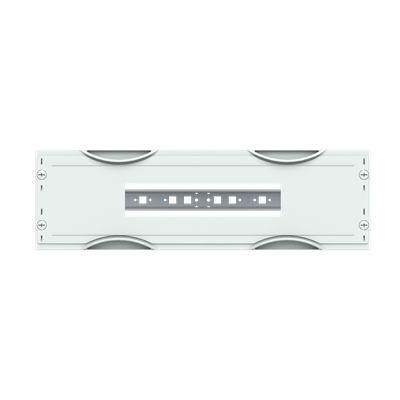

ABB 2CPX043421R9999 Switch Disconnector ATS - DIN EN 61439-3
Part Number: 2CPX043421R9999
Quick Summary
ABB 2CPX043421R9999 is a switch disconnector ATS housed in an interior fitting module for 24 DIN-place cabinets. In today’s panel builds, space, upgradeability, and regulatory compliance challenge designers and maintenance teams alike. This solution aligns with DIN EN 61439-3 and DIN EN 61439-2, carries CE conformity, and is RoHS/REACH compliant, reducing risk and lifecycle costs. With a 500 mm panel width, 150 mm height, and 215 mm built-in depth, it enables compact CombiLine installations while maintaining accessibility for maintenance. Designed to accommodate one OTM40-125 device in a 4P, 125 A, 400 V busbar system, it delivers scalable isolation for modular control panels.
Product Information
Extended Description
2CPX043421R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector ATS with-out device, Grid unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, , usuable width of 500 mm, unequipped for the installation of 1 ATS switch OTM40-125, for busbar system 4-pole, rated current maximum 125 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 215 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
125 A
Rated Operational Current (Ie)
125 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
OTM40-125
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Module Function
Switch disconnector ATS with-out device
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
150 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
0.798 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.83 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA125ALT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Interior fitting module tailored for CombiLine panels provides a compact 24 DIN-place footprint, reducing cabinet width without sacrificing accessibility. This improves maintenance turnaround and spare-part planning by letting you pre-plan one device in a dedicated 500 mm wide slot. Feature → 4P, 125 A rating with 400 V operation ensures reliable isolation of all poles, supporting safe startup and shutdown of multi‑line drives in industrial panels. This translates to lower fault exposure and faster commissioning in grid-tied systems. Feature → Frame compatibility with WR or EDF mounting frames offers flexible installation in a range of cabinet configurations, enabling streamlined retrofits and standardised layouts across facilities. This reduces total cost of ownership by simplifying sourcing and field assembly. Feature → RoHS and REACH compliance plus CE declaration provide regulatory assurance for European projects, minimizing risk during audits and customer inspections. This supports compliant procurement and smoother handovers to operations. Feature → Documentation and installation support, including MBA125ALT mounting instructions, improves first-time fit and reduces service time, helping technicians complete panel builds with confidence.
Get a Quick Quote for a ABB 2CPX043421R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX043421R9999?
Enquire Now
FAQs
Yes. The interior fitting module is designed to mount on WR or EDF frames and fits a 500 mm wide interior slot within 24 DIN units, accommodating one OTM40-125. Follow the MBA125ALT installation instructions for a correct, fast fit.
The module supports 400 V nominal operating voltage, 125 A rated current, and a 4P (four-pole) arrangement. It is designed to isolate a 4-pole busbar system with one mountable device in a 24 DIN footprint.
Yes. It is an interior fitting module purpose-built for CombiLine panels, with 24 DIN units and 500 mm width, enabling a compact yet serviceable 4P isolation solution integrated into busbar systems.
It carries CE conformity with DIN EN 61439-3 and DIN EN 61439-2 compliance, plus RoHS and REACH declarations, supporting regulatory compliance and safer, sustainable panel construction.
Installation is aided by MBA125ALT mounting instructions, and RoHS/REACH data accompany the product. These resources reduce commissioning time, simplify spare parts planning, and improve long-term maintenance efficiency.
