ABB 2CPX043422R9999 Switch disconnector ATS - DIN EN 61439-3
Part Number: 2CPX043422R9999
Quick Summary
ABB 2CPX043422R9999 Switch disconnector ATS provides safe isolation for 3-pole distribution in cabinet-based power systems. Engineers often struggle with space constraints and precise alignment when adding ATS devices into compact CombiLine panels. This unit complies with CE and DIN EN 61439-3/2, with RoHS and REACH declarations to support safe, regulation-friendly deployment in modern factories. The enclosure is designed for a 400 V system with up to 400 A, ensuring dependable performance in demanding environments. The interior fitting module design simplifies panel planning and reduces installation time, while the 72 DIN place units and 500 mm width adapt to standard cabinet footprints. For procurement, the compatible OX315-400 device and WR mounting frame improve install predictability and overall project efficiency.
Product Information
Extended Description

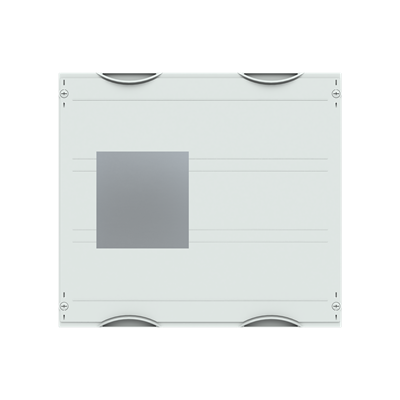

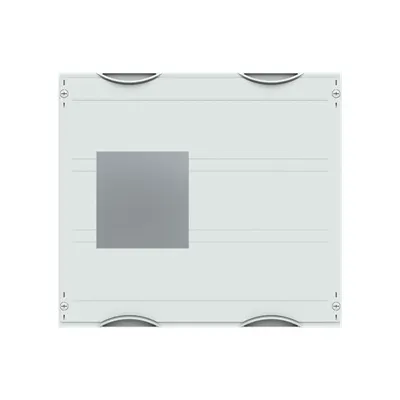

2CPX043422R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector ATS with-out device, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 500 mm, unequipped for the installation of 1 ATS switch OX315-400, for busbar system 3-pole, rated current maximum 400 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
400 A
Rated Operational Current (Ie)
400 A
Number of Poles
3P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
OX315-400
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Module Function
Switch disconnector ATS with-out device
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
275 mm
Section Width
2
Product Net Weight
3.798 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.95 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA250ALT / MBA400ALT / MBA401ALT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
