ABB 2CPX043425R9999 ATS Switch Disconnector - EN 61439-3
Part Number: 2CPX043425R9999
Quick Summary
ABB 2CPX043425R9999 is a cabinet-mounted switch disconnector ATS for 4P power distribution. Engineers often struggle with space constraints and ensuring compliant panel assemblies during modernization. The module meets DIN EN 61439-3 and DIN EN 61439-2 standards, is CE marked, and RoHS/REACH compliant. Designed for CombiLine interior fitting modules and 72-place busbar systems, it simplifies panel builds, reduces installation time, and improves safety, delivering long-term reliability for critical power distributions.
Product Information
Extended Description

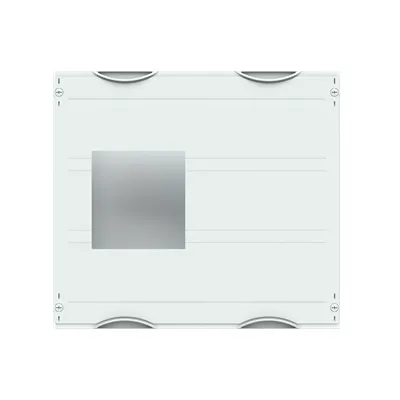

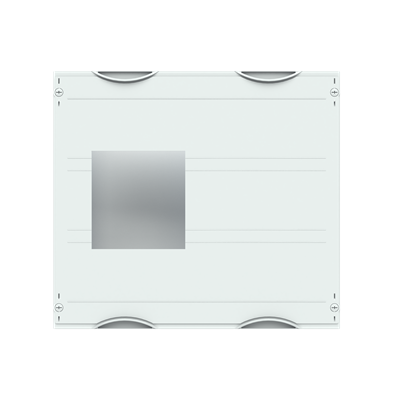

2CPX043425R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector ATS with-out device, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 500 mm, unequipped for the installation of 1 ATS switch OX200-250, for busbar system 4-pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Operational Current (Ie)
250 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
OX200-250
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Module Function
Switch disconnector ATS with-out device
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
275 mm
Section Width
2
Product Net Weight
3.909 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.065 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA250ALT / MBA400ALT / MBA401ALT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 4P interior fitting module with 72 DIN place units and 500 mm width, 450 mm height, 275 mm depth. Business Impact: Enables scalable, compact cabinet designs that fit tight layouts while maintaining accessibility for maintenance. Application: Ideal for grid unit installations in distribution panels where space is at a premium. Feature: Rated Operational Voltage up to 400 V and Rated Current up to 250 A. Business Impact: Supports robust, fault-tolerant performance for mid-range power distribution with ample headroom. Application: Suitable for 4-pole busbar systems in industrial control panels. Feature: Enclosure Mounting Frame WR and interior fitting module design. Business Impact: Simplifies mounting and enhances alignment with standardized panel builds, reducing commissioning time. Application: Seamless integration into factory automation cabinets and CombiLine installations. Feature: Device is specified for Switch disconnector ATS without device; 90-degree closure and light grey enclosure (RAL 7035). Business Impact: Improves safety and visibility while enabling quick service access and clean aesthetics in control rooms. Application: Commonly used in interior fittings for modular switchgear. Feature: Compliance and declarations (RoHS, REACH, WEEE). Business Impact: Ensures regulatory alignment, simplifies supplier audits, and mitigates risk in regulated markets. Application: Supports global deployments of panel systems in automotive, process, and energy sectors. Feature: Mounting and installation guidance (MBA250ALT / MBA400ALT / MBA401ALT). Business Impact: Reduces installation errors and accelerates time-to-value for panel builders. Application: Preferred by panel builders and system integrators deploying CombiLine interior fittings.
