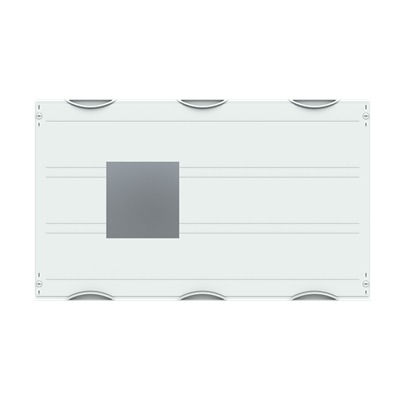

ABB 2CPX043428R9999 Switch disconnector ATS - DIN EN 61439-3
Part Number: 2CPX043428R9999
Quick Summary
ABB 2CPX043428R9999 is a switch disconnector ATS module designed for distribution panels in industrial electrical cabinets. Engineers often struggle with limited space, safe isolation, and maintaining regulatory compliance in fast-paced environments. This solution aligns with DIN EN 61439-2/3, CE declarations, RoHS and REACH requirements, ensuring reliability and traceability. For panel builders and OEMs, the interior fitting module offers a scalable, plug-in approach within the CombiLine system, featuring 108 DIN place units and a 750 mm width. It supports future upgrades and streamlined maintenance across diverse automation applications, delivering consistent performance in demanding industrial power environments.
Product Information
Extended Description

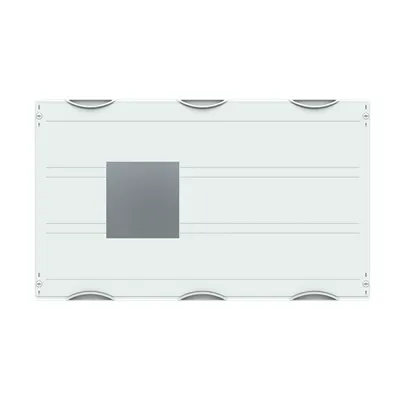

2CPX043428R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector ATS with-out device, Grid unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, , usuable width of 750 mm, unequipped for the installation of 1 ATS switch OX315-400, for busbar system 4-pole, rated current maximum 400 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
400 A
Rated Operational Current (Ie)
400 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
OX315-400
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
108
Module Function
Switch disconnector ATS with-out device
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
6.386 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.641 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA250ALT / MBA400ALT / MBA401ALT
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature rated current 400 A → Business Impact enables safe, reliable isolation for high-load feeders while reducing thermal stress and downtime → Application suited for 4P distribution panels in industry, including COMBLine interior fitting modules. Feature enclosure type interior fitting module → Business Impact supports modular, plug-in architecture for faster installation and easier field upgrades → Application ideal for panel builders seeking scalable cabinet designs. Feature device exclusion (enclosures exclude devices) → Business Impact gives procurement control and cost optimization by sourcing OX315-400 or compatible devices separately → Application useful when customizing ATS with off-the-shelf components. Feature 108 DIN place units and 750 mm width → Business Impact optimizes panel real estate and busbar organization for compact, high-density layouts → Application fits grid unit 3 GU = 450 mm and 750 mm cabinet width. Feature RoHS and REACH compliance with CE declarations → Business Impact reduces regulatory risk and supports sustainability reporting → Application ensures market-ready compliance for EU distribution panels. Feature mounting frame WR and interior mounting integration → Business Impact delivers robust mechanical stability and straightforward installation → Application aligns with CombiLine system and 4-pole busbar configurations.
Get a Quick Quote for a ABB 2CPX043428R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX043428R9999?
Enquire Now
FAQs
Yes. This model is designed as an interior fitting module for CombiLine, with a WR mounting frame and 108 DIN place units. It is sized at 750 x 450 x 275 mm and is intended for 4P switch disconnector applications. Note that the device itself is not included, so you’ll pair it with a compatible ATS device such as OX315-400 during final assembly.
Key specifications include a maximum operational voltage of 400 V, rated current of 400 A, and 4 poles (4P). It supports an ATS switch without a device, designed to be populated with an appropriate OX315-400 device per system requirements. These specs suit high-load distribution panels while maintaining safe isolation and reliability.
Yes. The product carries CE declarations and RoHS information aligned with EU Directive 2011/65/EU and its 2015/863 amendments, with REACH compliance statements. It is designed to DIN EN 61439-2 and DIN EN 61439-3 standards for distribution panel assemblies, ensuring regulatory alignment and safe operation in EU markets.
The enclosure is specified as ‘Excludes Devices,’ meaning you must source the switch device separately. The compatible device listed is OX315-400. This approach allows customization to your protection strategy and procurement preferences, while the enclosure provides the correct mounting, busbar path, and space for the ATS components.
Mounting instructions MBA250ALT, MBA400ALT, and MBA401ALT are listed for installation guidance. These references simplify install and commissioning, shorten field effort, and reduce downtime—translating to faster time-to-production and improved ROI for panel builders and system integrators working with CombiLine interior fitting modules.
