2CPX043748R9999
Part Number: 2CPX043748R9999
Product Information
Extended Description

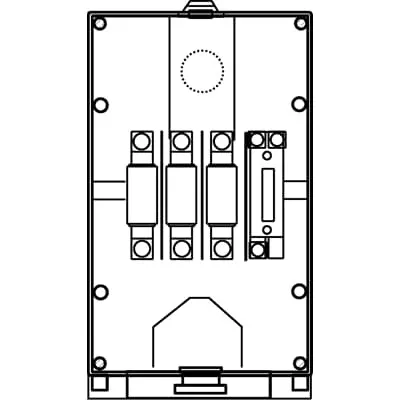

2CPX043748R9999 ABB: House junction box according to DIN 43627, size KH00A, suitable for meter connection columns.
Rated Current (In)
100 A
Enclosure Type
Enclosure accessories
Fuse Type
Knife blade fuse (NH)
Mounting Type
Mounting plate
Surface Finishing
other
Housing Material
Plastic
Material
Plastic
Mounting on DIN Rail
Universal
DIN Place Units
0
Meter Boards
1
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Prewired Residencial Metering Outdoor
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240917
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Width in Number of Modular Spacings
12
Product Net Width
238 mm
Product Net Height
412 mm
Product Net Depth / Length
132 mm
Product Net Weight
3.2 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.328 kg
Declaration of Conformity - CE
EU Declaration of Conformity Prewired Residencial Metering Outdoor
ETIM 8
EC000100 - Fuse enclosure
ETIM 9
EC000100 - Fuse enclosure
eClass
V11.0 : 27400628
Object Classification Code
U
