2CPX043751R9999
Part Number: 2CPX043751R9999
Product Information
Extended Description

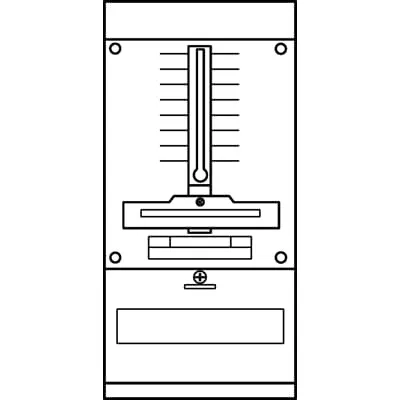

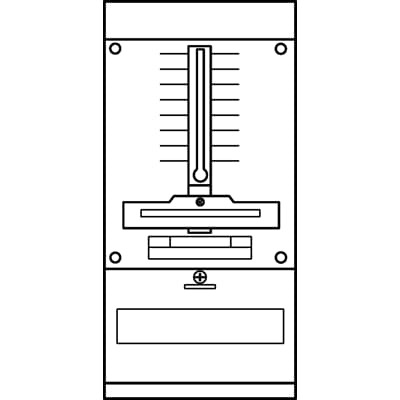

2CPX043751R9999 ABB: TSG field, 300 mm x 250 mm, connection compartment 150 mm x 250 mm, for on-site upgrades, incl. mounting parts, not fitted, suitable for meter connection columns.
Rated Current (In)
63 A
Model Number
1-story
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Enclosure accessories
Mounting Type
Mounting plate
Protection Type
None
Surface Finishing
other
Housing Material
Plastic
Material
Plastic
Cover Style
Closed
DIN Place Units
0
Meter Boards
1
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Prewired Residencial Metering Outdoor
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240917
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
500 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
2.3 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.3 kg
Declaration of Conformity - CE
EU Declaration of Conformity Prewired Residencial Metering Outdoor
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
