2CPX043773R9999
Part Number: 2CPX043773R9999
Product Information
Extended Description

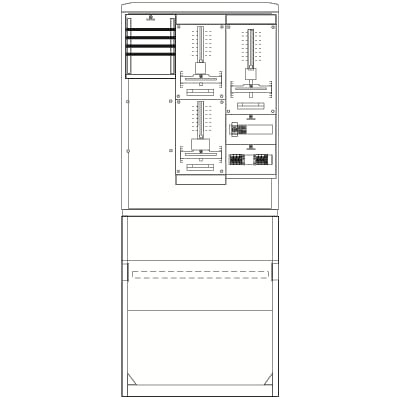

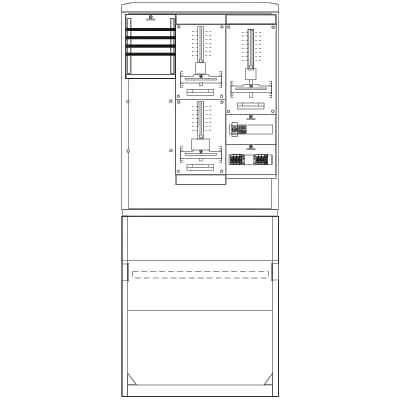

2CPX043773R9999 ABB: Meter board, series SZ, fully assembled cabinet, for the Outdoor, degree of protection IP44, rated current 63 A, other, in RAL 7035, enclosure out of Plastic, single-leaf door, with Swivel handle with half cylinder, door hinge right, rear wall out of Plastic, dimensions in mm (H x W x D): 1966 x 785 x 320, Metering module pre-wired, Number of meter spaces single tariff 2, Number of SG spaces 1
Rated Current (In)
63 A
Model Number
2-story
Number of Meter Cabinets
2
Number of Meter Panels
2
Number of Modular Spacings per DIN Rail
12
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 4 - pole
Enclosure Type
Meter board
Mounting Type
Pedestal (in-ground mounting)
Door Type
Single
Surface Finishing
other
Housing Material
Plastic
Material
Plastic
Cover Style
Closed
DIN Place Units
0
Meter Boards
1
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Prewired Residencial Metering Outdoor
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240917
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP44
Width in Number of Modular Spacings
36
Product Net Width
785 mm
Product Net Height
1966 mm
Product Net Depth / Length
320 mm
Section Width
3
Product Net Weight
60 kg
Built-In Depth (t2)
320 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
62.4 kg
Declaration of Conformity - CE
EU Declaration of Conformity Prewired Residencial Metering Outdoor
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
