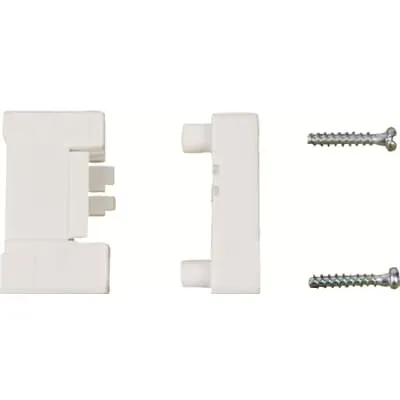

ABB 2CPX044011R9999 Busbar Holder - 630 A CE RoHS
Part Number: 2CPX044011R9999
Quick Summary
ABB 2CPX044011R9999 busbar holder provides secure mounting for high-current busbars in electrical panels. In tight spaces, precise alignment and reliable contact are critical, and many deployments struggle to maintain stability over time. This part carries CE conformity, RoHS compliance, and REACH information, simplifying regulatory audits and supplier qualification. With a compact 17x60x60 mm footprint and a 630 A rating, it delivers robust power distribution support for control cabinets, switchgear, and panel assemblies while helping reduce installation time and overall lifecycle costs.
Product Information
Extended Description
2CPX044011R9999 ABB: Busbar holder, 17 mm x 60 mm x 60 mm
Rated Current (In)
630 A
Number of Poles
1P
Enclosure Type
Busbar holder
Material
Plastic
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Busbar Holders
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
60 mm
Product Net Height
17 mm
Product Net Depth / Length
60 mm
Product Net Weight
0.069 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.07 kg
Declaration of Conformity - CE
EU Declaration of Conformity Busbar Holders
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001166 - Busbar support
ETIM 9
EC001166 - Busbar support
eClass
V11.0 : 27400607
Object Classification Code
U
Feature → Business Impact → Application: Rated Current of 630 A ensures stable, safe busbar mounting under heavy loads, reducing overheating risk and improving system reliability in industrial automation panels. This translates to fewer maintenance interventions and lower downtime for critical processes. Application: Power distribution panels in manufacturing lines benefit from predictable current handling and reduced risk of contact resistance losses. Feature → Business Impact → Application: 1P enclosure type simplifies single-pole busbar mounting, accelerating assembly and improving traceability in field installations. Application: OEM panel builds and retrofits gain faster commissioning and clearer documentation. Feature → Business Impact → Application: Plastic material reduces weight and non-metallic leakage paths, aiding installation in compact enclosures and limiting stray capacitance in control panels. Application: Control cabinets with tight layouts and stringent safety requirements. Feature → Business Impact → Application: RoHS, REACH, and CE declarations streamline compliance audits, supporting procurement teams and audit readiness. Application: Regulatory-compliant panel designs across automotive, food & beverage, and process industries. Feature → Business Impact → Application: Dimensions (60 mm x 17 mm x 60 mm) and weight (0.069 kg) enable dense packing and flexible placement in modular racks. Application: Modern switchgear housings and modular panels where space is at a premium. Feature → Business Impact → Application: ETIM EC001166 and eClass 27400607 classifications simplify part data management and ERP integration. Application: Global sourcing and component libraries for engineering teams.
Get a Quick Quote for a ABB 2CPX044011R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044011R9999?
Enquire Now
FAQs
Yes. The product is specified for a 17 mm x 60 mm x 60 mm footprint and 1P configuration, designed to fit common busbar dimensions used in control cabinets and switchgear. For best results, ensure the panel offers a compliant mounting plane and adequate clearance around the holder to maintain thermal and electrical performance.
Key specs include a 630 A rated current and 1P configuration. The enclosure is plastic, and the net dimensions are 60 mm (width) x 17 mm (height) x 60 mm (depth) with a net weight of 0.069 kg. Verify panel space, clearance for busbar routing, and that the current path remains within the rated 630 A to avoid overheating.
Ideal for industrial power distribution panels, control cabinets, and switchgear in manufacturing, process industries, and automation environments. Its compact form factor supports dense panel layouts, while the 630 A rating suits high-current distribution tasks without compromising safety or performance.
The part includes CE Declaration of Conformity, RoHS information and status, and REACH declarations. These certifications support regulatory compliance in many regions, simplify supplier qualification, and aid in passing audits during panel builds or upgrades.
The holder’s lightweight, compact design reduces installation time and cabinet congestion, while its RoHS/REACH/CE compliance minimizes compliance risk and future-proofing costs. Long-term maintenance benefits include reliable contact stability and fewer reworks in dense panel layouts.
