ABB 2CPX044019R9999 Busbar Holder - CE RoHS Compliance
Part Number: 2CPX044019R9999
Quick Summary
N/PE-busbar holder from ABB provides secure, compact busbar support for two-pole distribution in control panels and machine enclosures. This design addresses cramped layouts and inconsistent mounting, offering a predictable footprint and reliable material performance. The product carries CE Declaration of Conformity, EU RoHS compliance, and REACH information to help meet regulatory requirements, plus WEEE guidance. With a 95 mm width, 25 mm height, and 155 mm depth footprint weighing 0.13 kg, it enables efficient panel design. For panel builders and machine OEMs, this N/PE holder reduces installation time and risk while aligning with long-term maintenance goals.
Product Information
Extended Description

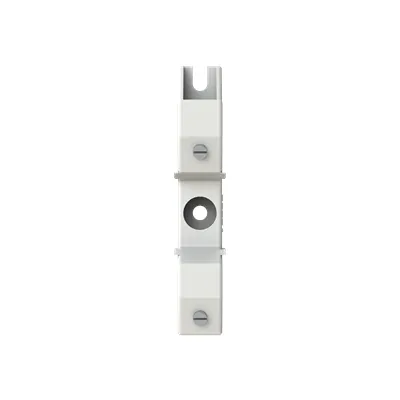

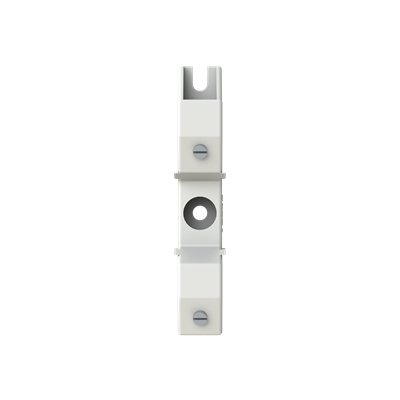

2CPX044019R9999 ABB: N/PE-busbar holder, 25 mm x 95 mm x 155 mm
Rated Current (In)
630 A
Number of Poles
2P
Enclosure Type
N/PE-busbar holder
Material
Plastic
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Busbar Holders
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
95 mm
Product Net Height
25 mm
Product Net Depth / Length
155 mm
Product Net Weight
0.13 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.135 kg
E-Number (Norway)
2439255
Declaration of Conformity - CE
EU Declaration of Conformity Busbar Holders
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001166 - Busbar support
ETIM 9
EC001166 - Busbar support
eClass
V11.0 : 27400607
Object Classification Code
U
Feature → Business Impact → Application: Rated current of 630 A supports high-load distribution without overheating, enabling safer motor and feeder feeds in power management panels; this reduces trips and improves uptime in industrial automation environments. The two-pole (2P) configuration minimizes footprint while maintaining reliable conductors, ideal for compact control cabinets and machine panels. Enclosure Type N/PE-busbar holder ensures proper isolation and organized grounding paths, improving safety and traceability in critical electrical assemblies. The plastic material combination provides a lightweight, cost-effective solution with good insulating properties, reducing transport and installation labor while maintaining structural integrity in standard panel environments. RoHS information and REACH declarations ensure regulatory compliance across EU markets, supporting sustainability goals and supplier audits. The compact dimensions (95 mm width, 25 mm height, 155 mm depth) and 0.13 kg weight simplify logistics, enable easier mounting in tight panels, and reduce overall total cost of ownership. ETIM 8/9 and eClass classifications aid in accurate product categorization for procurement systems, improving searchability and catalog accuracy. This busbar holder is compatible with common pre-wired panel layouts and supports efficient maintenance checks by providing clear busbar paths and labeling opportunities. In practice, engineers report faster wiring schemes and improved fault isolation when integrating this component into panel builds.
Get a Quick Quote for a ABB 2CPX044019R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044019R9999?
Enquire Now
FAQs
The ABB 2CPX044019R9999 is designed as an N/PE-busbar holder with a 95 mm width, 25 mm height, and 155 mm depth footprint to fit standard electrical panels and machine enclosures. It supports two-pole busbar assemblies and aligns with common mounting schemes used in control cabinets. When selecting enclosure compatibility, verify the footprint against your panel cutouts and ensure adequate clearance for wiring and labeling.
Key specifications include a rated current (I_n) of 630 A and a 2P configuration. Made from plastic, it provides electrical insulation suitable for standard panel environments. RoHS information and REACH declarations confirm regulatory compliance, while the EU CE Declaration of Conformity supports conformity assessments for European installations. The dimensions (95x25x155 mm) define its space envelope within the panel design.
Yes. The combination of 630 A rating, 2P configuration, and compact footprint makes it suitable for motor control centers, process automation panels, and general control cabinets. Its N/PE-busbar enclosure design helps maintain organized, safe grounding paths, reducing wiring complexity and improving maintenance access in automation environments while meeting industry compliance requirements.
This product carries a CE Declaration of Conformity, EU RoHS compliance, and a REACH declaration, aligning with EU regulatory frameworks. WEEE guidance is provided for proper end-of-life management. These certifications help with supplier audits, regulatory filings, and certification trails during procurement and commissioning in regulated industries.
The light 0.13 kg weight reduces shipping and handling costs, while the plastic enclosure provides durable insulation and resistance against typical panel environment wear. The standardized 2P footprint and clear labeling support faster maintenance and fault location, contributing to reduced downtime and improved total cost of ownership over the equipment’s lifecycle.
