ABB 2CPX044049R9999 Enclosure Accessories - CE Declaration
Part Number: 2CPX044049R9999
Quick Summary
ABB 2CPX044049R9999 Enclosure Accessories simplify panel cabinet layouts for robust, organized control enclosures. Engineers often struggle with mismatched shutters and color tones when expanding systems; this solution provides color-matched ComfortLine components, endplates, and mounting hardware to streamline installs. It carries CE conformity with the EU Declaration of Conformity, RoHS compliance under Directive 2011/65/EU and Amendment 2015/863, and REACH declarations, ensuring regulatory alignment across markets. Designed to integrate with ComfortLine cabinet systems, it also supports straightforward retrofits and scalable configurations. By standardizing color, materials, and connection points, this accessory kit reduces commissioning time while maintaining visual and functional consistency across multiple panel projects.
Product Information
Extended Description

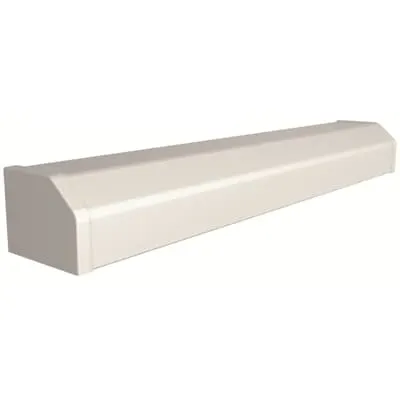

2CPX044049R9999 ABB: Arrangement shutters with endplates and angle brackets, color RAL 9016, adjusted to the color of the cabinets, field width 1, width 300 mm. The lines in the input region of the arrangement are protected with the stable plastic material of the shutters. A simple conversion of the profile makes it possible to also use the arrangement shutters for the flat distributor housings.
Suitable For
1/00A|1/00B|1/0A|1/0B|1/1A|1/1B|1/2A|1/2B|1/3A|1/3B|1/4A|1/4B|1/5A|1/5B|AL31|AL41|AL51|AL61|AT31|AT41|AT41R3|AT41TE|AT41TR3|AT51|AT51R4|AT51TE|AT51TR4|AT61|AT61R5|AT61TE|AT61TR5|TA31|TA41|TA51|TA61
Enclosure Type
Enclosure accessories
DIN Place Units
0
Meter Boards
1
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
300 mm
Product Net Height
110 mm
Product Net Depth / Length
150 mm
Section Width
1
Product Net Weight
0.8 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.8 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction KB
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC000083 - Transition cover section for installation duct
ETIM 9
EC000083 - Transition cover section for installation duct
eClass
V11.0 : 27400777
Object Classification Code
U
Feature → Business Impact → Application: The arrangement shutters are color-matched to RAL 9016, ensuring a cohesive cabinet appearance and reducing post-install touch-ups. This improves maintenance reviews and visual compliance across sites. Application: Suitable for a wide range of cabinet variants within the ComfortLine family, enabling quick upgrades without redesigns. Feature → Business Impact → Application: Endplates and angle brackets provide rigid mounting options that protect input regions and simplify field wiring, reducing risk of cable damage during service and expansion. Application: Ideal for panel builders expanding control systems in manufacturing lines. Feature → Business Impact → Application: The profile can be converted for use with flat distributor housings, delivering installation flexibility and cost savings by reusing existing components. Application: Suitable for both new builds and retrofits in panels requiring compact, modular arrangements. Feature → Business Impact → Application: Color stability and material performance in a 110 mm x 300 mm x 150 mm footprint support consistent enclosure aesthetics and reliable protection in harsh environments. Application: Universal for compact enclosure expansions in automation panels. Feature → Business Impact → Application: RoHS and REACH compliance provide regulatory assurance and risk reduction for multinational deployments. Application: Essential for customers targeting EU markets and supply chains with strict material controls.
Get a Quick Quote for a ABB 2CPX044049R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044049R9999?
Enquire Now
FAQs
This kit is designed for the ABB ComfortLine cabinet system Type A/B and supports a broad range of variants listed in the technical data, including 1/00A through TA61 categories. It uses the 110x300x150 mm footprint and aligns with Color RAL 9016 for a uniform look across installations.
The arrangement shutters protect the input region with durable plastic, preventing tool or finger intrusion while maintaining clean routing. Endplates and angle brackets provide a rigid, vibration-resistant mount, reducing wiring fatigue and accidental disconnections during maintenance or expansion.
The product carries CE conformity with the EU Declaration of Conformity for ComfortLine Cabinet System Type A/B, RoHS compliance under Directive 2011/65/EU and Amendment 2015/863, and REACH declarations confirming substance controls. WEEE categorization indicates non-application to WEEE scope in this context, supporting global regulatory alignment.
The net width is 300 mm, height 110 mm, and depth 150 mm, with a net weight of 0.8 kg per unit. These compact dimensions enable clean integration into existing enclosures and ease handling during installation or retrofits, with pack level 1 piece per unit.
Mounting instructions are provided (Mounting instruction KB). The kit includes endplates and angle brackets, and the profile can be converted to support flat distributor housings, offering installation flexibility and faster project completion for panel builders.
