ABB 2CPX044052R9999 Enclosure accessories - CE
Part Number: 2CPX044052R9999
Quick Summary
ABB 2CPX044052R9999 enclosure accessories enable simple shutter assembly for 110 mm cabinets in control rooms. This solution reduces downtime during cabinet conversions and helps engineers achieve consistent aesthetics with a color-aligned finish. It bears CE conformity, RoHS compliance, and a REACH declaration to meet high regulatory standards, supporting safe and sustainable deployments. Compatible with ComfortLine cabinet systems and flat distributor housings, it streamlines installation workflows, improves serviceability, and reduces total installed cost by minimizing bespoke mounting work. With reliable materials and a protective input region, it also supports ongoing maintenance and upgrade cycles in evolving control environments.
Product Information
Extended Description

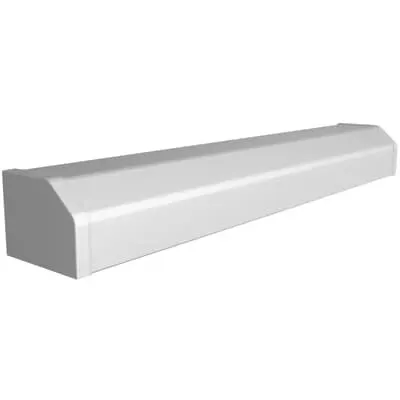

2CPX044052R9999 ABB: Arrangement shutters with endplates and angle brackets, color RAL 9016, adjusted to the color of the cabinets, field width 4, width 1050 mm. The lines in the input region of the arrangement are protected with the stable plastic material of the shutters. A simple conversion of the profile makes it possible to also use the arrangement shutters for the flat distributor housings.
Suitable For
4/00A|4/0A|4/0B|4/1A|4/1B|4/2A|4/2B|4/3A|4/3B|4/4A|4/4B|4/5A|4/5B|AL54|AL64|AT54E|AT54K|AT54R4|AT54TR4|AT64K|TA54|TA64
Enclosure Type
Enclosure accessories
DIN Place Units
0
Meter Boards
1
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1050 mm
Product Net Height
110 mm
Product Net Depth / Length
150 mm
Section Width
4
Product Net Weight
1.6 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.6 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
Instructions and Manuals
Mounting instruction KB
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC000083 - Transition cover section for installation duct
ETIM 9
EC000083 - Transition cover section for installation duct
eClass
V11.0 : 27400777
Object Classification Code
U
Color coordination and protective shutters improve aesthetics and input-region protection, reducing corrosion risk while keeping the installation visually cohesive with RAL 9016 finishes. This feature translates into fewer field touch-ups and a cleaner panel appearance, which matters for audits and customer requests in automation projects. The precise 110 mm x 1050 mm x 150 mm footprint and 4-section width ensure a ready-made fit for ComfortLine cabinets, cutting on-site modifications and accelerating panel deployment. RoHS and REACH compliance mitigate regulatory risk and support sustainability goals, while the CE Declaration of Conformity confirms regulatory readiness for European projects. Compatibility with ComfortLine cabinet system Type A/B and flat distributor housings streamlines replacements and upgrades, reducing downtime and warranty calls. Data sheets and mounting instructions (KB) further improve install accuracy and knowledge transfer on site.
Get a Quick Quote for a ABB 2CPX044052R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044052R9999?
Enquire Now
FAQs
These enclosure accessories are designed to work with ABB ComfortLine cabinet systems Type A/B. They include arrangement shutters, endplates and angle brackets that align with a 1050 mm width and 110 mm height, simplifying retrofit or new-build installations without modifying the cabinet frame.
Key specs include 110 mm product height, 1050 mm net width, 150 mm depth, color RAL 9016 (Traffic White), weight 1.6 kg, and a 4-section width. They are RoHS and REACH compliant with a CE declaration, and they suit ComfortLine cabinet system Type A/B with 1 meter ranges for input-region shutters.
Yes. The product carries a CE Declaration of Conformity for the ComfortLine cabinet system Type A/B and RoHS/REACH compliance, including a REACH declaration stating no substances above 0.1 mass percentage and related compliance documentation.
The accessories reduce installation time by providing pre-fabricated shutters and endplates that fit standard cabinet footprints, minimize field modification, and simplify maintenance. Regulatory compliance minimizes risk and rework, while compatibility with ComfortLine systems supports scalable deployments across multiple panels.
Ideal for control room panels, distribution cabinets, and automation enclosures where consistent aesthetics and protected input regions matter. Suitable for panel builders and integrators working with ComfortLine cabinets, flat distributor housings, and configurations like 4/0A through TA64 variants, ensuring reliable, repeatable installations.
