ABB 2CPX044092R9999 Main Circuit Breaker Tmax - DIN EN 61439-3
Part Number: 2CPX044092R9999
Quick Summary
ABB 2CPX044092R9999 Main Circuit Breaker Tmax is a protective device for distribution panels in industrial switchgear. Engineers often face challenges with space, accessibility, and compliance when upgrading MCCB systems in compact enclosures. This unit carries DIN EN 61439-3 and CE declarations, plus RoHS and REACH compliance with clear documentation. With 96 DIN places, a 630 A rating, and XT5 compatibility, it enables scalable protection while reducing the total cost of ownership and simplifying panel integration across CombiLine interior fitting modules.
Product Information
Extended Description

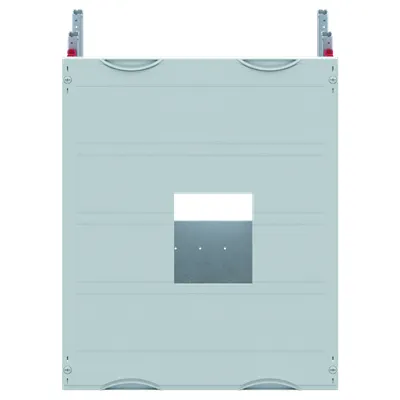

2CPX044092R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Main circuit breaker Tmax, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 500 mm, unequipped for the installation of 1 MCCB XT5, for busbar system 4-pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Rated Operational Current (Ie)
630 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Mounting Frame
WR
Device
XT5
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
96
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
00c4a0bb-4e29-4765-851a-21ad9b1de6be Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
9.049 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.411 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MX208LX_...LXB_MX210LX
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 4P XT5 device within an interior fitting module. Benefit: Enables space-efficient protection for Tmax MCCBs in compact switchgear, supporting easy integration into CombiLine panels. Application: Suitable for 630 A, 400 V distribution in 96 DIN unit enclosures. Feature: 96 DIN place units and 600 mm x 500 mm cabinet footprint. Benefit: Maximizes enclosure space utilization and simplifies layout planning for large-scale control panels. Application: 4-pole protection in factory automation and process lines. Feature: Enclosure frame WR with 90-degree closure and light grey plastic cover. Benefit: Durable, service-friendly enclosure with reliable access and maintenance workflows. Application: Long-term equipment protection in harsh environments. Feature: RoHS and REACH compliance with EU declarations. Benefit: Ensures regulatory alignment, reducing risk during audits and while sourcing. Application: Compliance-focused projects and OEM certifications. Feature: Accessories available and XT5 compatibility. Benefit: Flexible expansion and seamless replacement or upgrade paths without re-architecting panels. Application: Modular control cabinets and retrofit projects in existing installations.
