ABB 2CPX044095R9999 Tmax Main Breaker - DIN EN 61439
Part Number: 2CPX044095R9999
Quick Summary
ABB 2CPX044095R9999 is a Tmax Main Breaker interior fitting module designed to hold a 4-pole MCCB inside CombiLine modular panels. Engineers often struggle with fitting high-current protection into compact cabinet footprints, and with future expansion in mind. Key certifications include DIN EN 61439-3 and DIN EN 61439-2, CE conformity, plus RoHS/REACH declarations for safety and regulatory compliance. Designed for 96 DIN space units and a usable width of 500 mm, it enables scalable protection in control cabinets, improving install speed and maintenance planning. By aligning with industry standards and modular layouts, it supports faster commissioning and lower lifecycle costs for electrical protection and distribution applications.
Product Information
Extended Description

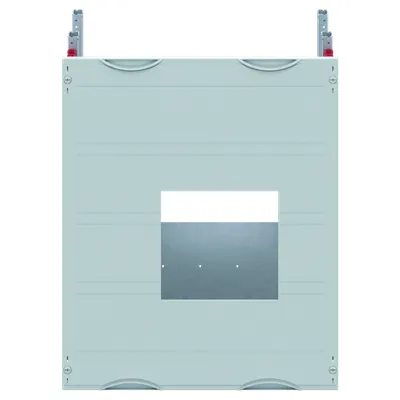

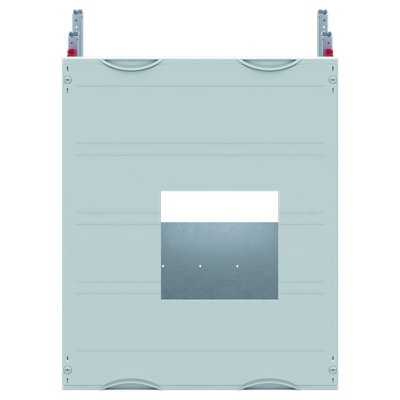

2CPX044095R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Main circuit breaker Tmax, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 500 mm, unequipped for the installation of 1 MCCB XT6, for busbar system 4-pole, rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
1000 A
Rated Operational Current (Ie)
1000 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Mounting Frame
WR
Device
XT6
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
96
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
68da1496-b694-4694-aaad-005b4c1dd65f Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
9.049 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.411 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MX208LX_...LXB_MX210LX
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: High-current protection in a compact interior fitting module. Business Impact: Enables 4-pole Tmax MCCB protection up to 1000 A within a 96 DIN unit footprint, reducing cabinet height and simplifying wiring. Application: Ideal for indoor distribution within CombiLine panels in industrial control cabinets, delivering reliable protection for high-load feeders. Feature: Precise dimensional fit (500 mm width, 600 mm height, 400 mm depth) with WR enclosure mounting frame. Business Impact: Improves enclosure utilization and enables standardized layouts across multiple line configurations. Application: Suitable for modular distribution architecture and grid units with a 600 mm layout. Feature: 4-pole device support with interior fitting module design and 90-degree closure. Business Impact: Facilitates safe, accessible commissioning and maintenance. Application: Supports Tmax protection in 4P configurations with straightforward service access. Feature: Compliance and declarations (RoHS, REACH, CE) built-in. Business Impact: Reduces regulatory risk and accelerates customer acceptance. Application: Compatible with EU compliance frameworks for electrical protection panels. Feature: DIN place units and 96-position capacity. Business Impact: Provides scalable protection density in medium to large control cabinets, enabling future expansion without hardware changes. Application: Supports long-term system upgrades and modular retrofit programs.
