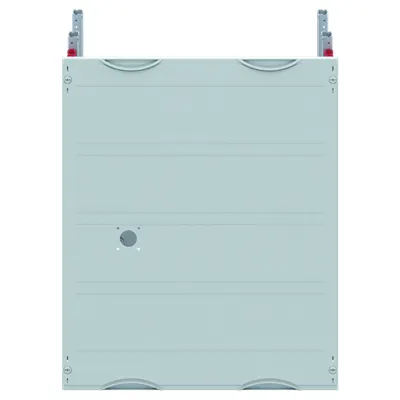

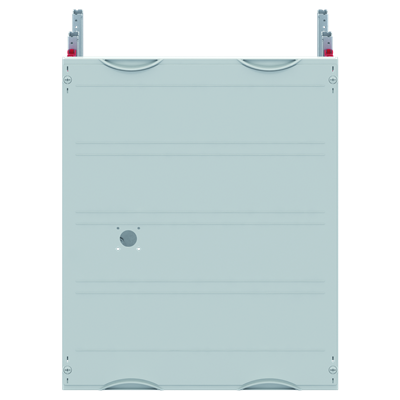

ABB 2CPX044096R9999 Switch Disconnector - 400 V 61439-3
Part Number: 2CPX044096R9999
Quick Summary
ABB 2CPX044096R9999 Switch Disconnector is an interior fitting module that safely isolates circuits within CombiLine distribution panels. End users often suffer downtime when isolation is unclear or slow, impacting safety and project timelines. This product carries CE conformity, DIN EN 61439-2/3 compliance, and RoHS/REACH declarations to support regulatory and environmental requirements. Designed for modular CombiLine cabinets, it enables fast installation and safer power distribution, with 96 DIN places and an 800 A capacity.
Product Information
Extended Description
2CPX044096R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector OT not connected, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 500 mm, unequipped for the installation of 1 OT switch OT630 up to 800, for busbar system 4-pole, rated current maximum 800 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
800 A
Rated Operational Current (Ie)
800 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Mounting Frame
WR
Device
OT630 up to 800
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
96
Module Function
Switch disconnector OT not connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
4114c66e-db95-4185-a000-fbe27cf6d7d1 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
7.854 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
8.168 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MX208LAL/...LAM_MX310LAL/...LAM
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature 1: High current capability up to 800 A and 4P configuration supports demanding industrial feeders, delivering reliable isolation under heavy load. Business Impact: minimizes unplanned outages and extends service intervals while reducing downtime costs. Application: ideal for large modular distribution panels in chemical, metals, and power utility environments. Feature 2: Interior fitting module design tailored for CombiLine systems, offering 600 mm grid unit height and 500 mm enclosure width for optimized space planning. Business Impact: increases panel density and simplifies retrofit projects, lowering installation labor and material costs. Application: suitable for new builds and upgrades in compact control rooms. Feature 3: 96 DIN place units and 90 degree press and turn closure enhance accessibility and wiring management. Business Impact: accelerates assembly, improves electrical clearances, and reduces commissioning time. Application: supports rapid deployment in panel shops and field installations. Feature 4: Durable light grey cover, plastic enclosure, and WR mounting frame provide robust protection and easy integration. Business Impact: improves environmental resilience and simplifies maintenance with standardized components. Application: fits standard ABB CombiLine assemblies and broadens compatibility with accessories. Feature 5: Comprehensive documentation and standards alignment including EN 61439-2/3, RoHS, REACH, and WEEE support. Business Impact: mitigates compliance risk, eases audits, and aligns with procurement governance. Application: ideal for regulated industries seeking traceable conformity and sustainable design.
Get a Quick Quote for a ABB 2CPX044096R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044096R9999?
Enquire Now
FAQs
This interior fitting module is designed for CombiLine systems and supports 96 DIN place units with a 500 mm usable width. It uses the WR mounting frame and matches the 600 mm grid height, enabling straightforward mounting and alignment with existing CombiLine accessories. Follow the MX208LAL installation instructions for precise mounting and cable routing.
The unit is rated for 4 poles with a nominal current up to 800 A and a rated operational voltage up to 400 V. It is specified for interior mounting with one OT630 device up to 800 A, making it suitable for high-capacity distribution within modular cabinets while maintaining safe isolation and compliance with DIN EN 61439-2/3.
Yes. It carries CE conformity, is aligned with DIN EN 61439-2/3, and meets RoHS and REACH declarations. Additional declarations cover WEEE categorization and SCIP data, supporting regulatory audits and responsible procurement.
Accessories are available to extend functionality, including mounting frames and compatible cover options. Documentation includes mounting instructions MX208LAL/...LAM_MX310LAL/...LAM, ensuring clear guidance during installation and future maintenance tasks.
The module enables fast, safe isolation in 4P distribution panels, reducing commissioning time and downtime costs. Its modular fit and 96 DIN places optimize space and wiring management, while compliance with EN 61439-2/3 and RoHS/REACH mitigates regulatory risk, supporting long-term maintenance efficiency and total cost of ownership reductions.
