ABB 2CPX044097R9999 Switch Disconnector OT - 400V/800A
Part Number: 2CPX044097R9999
Quick Summary
ABB 2CPX044097R9999 Switch Disconnector OT provides modular protection for 4-pole distribution panels. This interior fitting module reduces downtime by offering a ready-to-install solution that minimizes wiring errors in busy control cabinets. The design aligns with CE conformity, RoHS compliance, and the DIN EN 61439 standards to meet regulatory and safety expectations. With 96 DIN places, a 600 mm width and 500 mm depth footprint, and an 800 A rating, it enables scalable, reliable electrical protection in industrial switchgear and panel assemblies.
Product Information
Extended Description

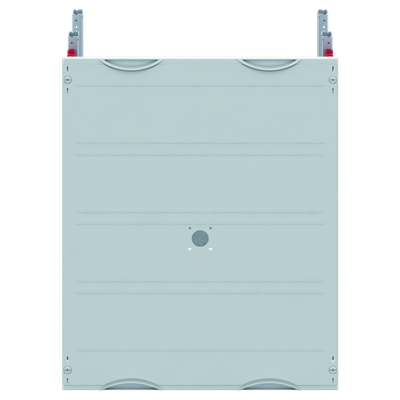

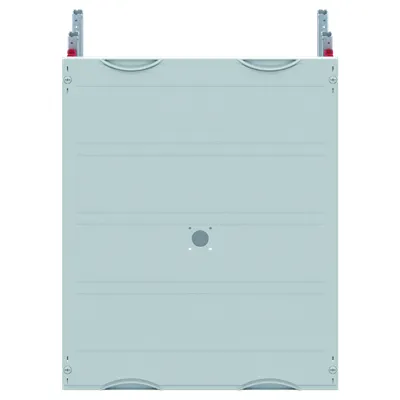

2CPX044097R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector OT not connected, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 500 mm, unequipped for the installation of 1 OT switch OT630 up to 800, for busbar system 4-pole, rated current maximum 800 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
800 A
Rated Operational Current (Ie)
800 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Mounting Frame
WR
Device
OT630 up to 800
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
96
Module Function
Switch disconnector OT not connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
9ebff2b8-cee8-4f1e-962a-dfce3f8d5b6f Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
7.854 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
8.168 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MX208LAL/...LAM_MX310LAL/...LAM
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The interior fitting module design enables quick deployment within CombiLine panels, reducing commissioning time and project lead times for panel builders. This translates to lower installation costs and faster time-to-value for OEMs deploying modular electrical protection in new facilities. Application: Ideal for 4-pole switch disconnector configurations inside 600x500 mm enclosures, supporting 96 DIN units and allowing one OT630 device up to 800 A to be integrated without custom fabrication. Feature → Business Impact → Application: The WR enclosure mounting frame and 600 mm height ensure robust mounting in industrial environments, improving vibration resistance and lifecycle reliability. Application: Suitable for assembly in control cabinets and industrial switchgear where space is constrained yet high current capability is required. Feature → Business Impact → Application: Compliance with DIN EN 61439 family, CE conformity, and RoHS ensures regulatory alignment and safer material usage, reducing risk in audits and customer inspections. Application: Fits regulated production lines and automotive, food processing, and energy installations demanding traceable compliance. Feature → Business Impact → Application: 96 DIN place units provide scalable configuration for future expansion, minimizing upfront capital expenditure while preserving upgrade paths. Application: Useful in multi-stage protection schemes and rising load profiles in large distribution panels.
