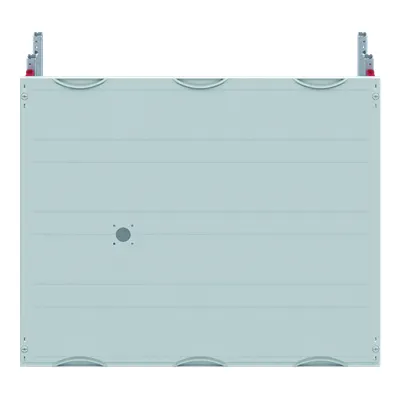

ABB 2CPX044098R9999 Interior fitting module - DIN EN 61439
Part Number: 2CPX044098R9999
Quick Summary
ABB 2CPX044098R9999 interior fitting module is a modular distribution component for CombiLine panels, designed to support a 4P busbar system up to 1000 A in industrial cabinets. Engineers often struggle with limited cabinet space, wiring complexity, and extended commissioning times; this module reduces footprint, simplifies interior mounting, and speeds installation. It carries CE marking and RoHS/REACH compliance, aligned with DIN EN 61439-2/3 standards, to help you meet regulatory requirements while ensuring safe operation. The design integrates seamlessly with 600 mm cabinet depths and 750 mm widths, enabling scalable, maintainable power distribution for industrial automation and electrical protection applications.
Product Information
Extended Description
2CPX044098R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector OT not connected, Grid unit 4 GU = 600 mm, panel width 3 = 750 mm, 144 Space units, , usuable width of 750 mm, unequipped for the installation of 1 OT switch OT1000 up to 1250, for busbar system 4-pole, rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
1000 A
Rated Operational Current (Ie)
1000 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Mounting Frame
WR
Device
OT1000 up to 1250
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
144
Module Function
Switch disconnector OT not connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
86ad8717-2088-45f5-90f0-801adacb64bc Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
13.754 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
14.304 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MX208LAL/...LAM_MX310LAL/...LAM
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Interior fitting module for CombiLine distribution panels provides a ready-made interior section with 144 DIN spaces and a 750 mm width, enabling faster assembly and cleaner wiring routes. This translates to measurable time savings during panel builds and reduced field wiring errors, improving overall project uptime. Enclosure mounting frame WR supports straightforward installation inside standard cabinets, delivering robust mechanical alignment and serviceability with compatible 600 mm cabinet heights, simplifying retrofits and upgrades in existing plants. With a 1000 A rated current and 4 poles, the module supports high-power distribution for motor drives and process lines, minimizing the need for parallel components and reducing total installed cost. Plastic covers offer durable protection while keeping weight manageable for on-site handling and maintenance, aided by a 90-degree closure for secure, tamper-resistant access. Compliance to RoHS and REACH, plus DIN EN 61439-2/3, mitigates regulatory risk and supports European deployments. The 144 DIN units and precise built-in depth of 400 mm help standardize layouts, improving consistency across multiple switchgear sections and simplifying spare parts planning for maintenance teams.
Get a Quick Quote for a ABB 2CPX044098R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044098R9999?
Enquire Now
FAQs
This interior fitting module is designed for WR enclosure frames in a CombiLine system. Align with the cabinet’s 600 mm depth and 750 mm width, mount within the WR frame, and connect the 4P busbar assembly to the OT mounting area. Ensure the unit is fully seated in the 144 DIN spaces and secure the 90-degree closure for safe access during commissioning.
Key specs include a rated current of 1000 A, rated operational voltage of 400 V, and a 4P configuration. The device is intended for interior mounting and supports up to OT1000 up to 1250 in its referenced use, making it suitable for high-demand distribution in industrial automation environments.
The product is an interior fitting module designed for indoor distribution panel systems (CombiLine). It is not rated for outdoor exposure; for harsh environments, pairing with appropriate enclosure frames and protective enclosures is recommended to maintain IP integrity and electrical safety.
It complies with DIN EN 61439-2 and DIN EN 61439-3, carries CE conformity, and adheres to RoHS and REACH requirements. It is also associated with SCIP and WEEE declarations, reflecting responsible material use and lifecycle considerations in European markets.
The 144 DIN spaces and modular interior design simplify spare parts planning and preventive maintenance, reducing downtime during inspections. Faster installation and standardized dimensions improve project throughput, lowering total cost of ownership while maintaining regulatory compliance.
