ABB 2CPX044100R9999 Switch Disconnector ATS - DIN EN 61439
Part Number: 2CPX044100R9999
Quick Summary
ABB 2CPX044100R9999 Switch Disconnector ATS enables safe isolation in modular distribution panels. Engineers struggle with cramped spaces, mis-matched components, and costly downtime during upgrades. This unit aligns with DIN EN 61439-3 and DIN EN 61439-2, plus CE conformity, RoHS, and REACH declarations for regulatory certainty. As part of ABB CombiLine interior fitting modules, it supports a 144 DIN-placed footprint and up to 800 A at 400 V, delivering scalable, compliant panel solutions. It also integrates with 4-pole busbar systems and a WR mounting frame to streamline installation. For maintenance, modular design reduces downtime and simplifies future upgrades.
Product Information
Extended Description

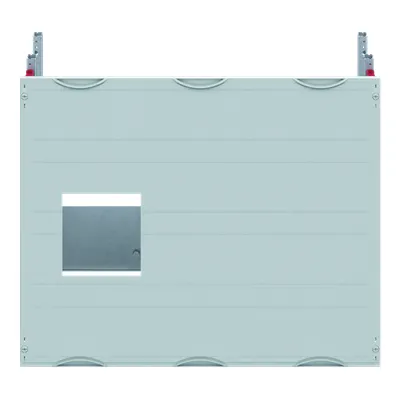

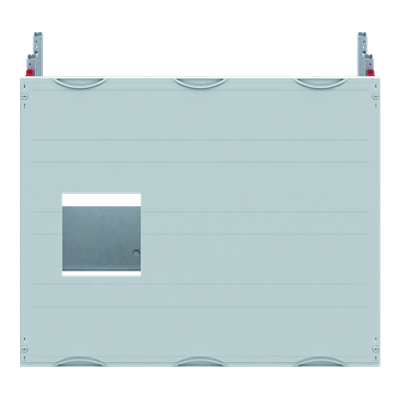

2CPX044100R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector ATS with-out device, Grid unit 4 GU = 600 mm, panel width 3 = 750 mm, 144 Space units, , usuable width of 750 mm, unequipped for the installation of 1 ATS switch OX800, for busbar system 4-pole, rated current maximum 800 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
800 A
Rated Operational Current (Ie)
800 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Mounting Frame
WR
Device
OX800
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
144
Module Function
Switch disconnector ATS with-out device
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
a51be86f-bb9e-45fe-a363-61a8b366adbb Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
13.751 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
14.301 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MX308LU
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Space-efficient interior fitting module design enables a compact footprint within ABB CombiLine panels. This architecture maximizes the usable cabinet width (750 mm) while accommodating a single mountable device and a 4-pole busbar arrangement, reducing enclosure depth and wiring complexity. Application: Ideal for 600 mm by 750 mm by 400 mm modular control centers where space is at a premium in machine building and process automation. Feature: High current capacity with reliable 800 A rating. Business impact: It lowers the need for device paralleling and simplifies protective coordination, saving installation time and ongoing maintenance costs. Application: Suitable for main feeders and motor-control centers in heavy industry with demanding load profiles. Feature: 4-pole configuration and OX800 compatibility with a WR mounting frame. Business impact: Facilitates safe, grouped switching and straightforward integration into existing 4-pole busbar systems, reducing engineering effort. Application: Used in distribution panels that require four-pole isolation and easy upgrade paths within the CombiLine portfolio. Feature: RoHS and REACH compliance plus CE declarations. Business impact: Ensures regulatory compliance, traceability, and lower risk of product withdrawal, improving quality assurance across your supply chain. Application: Suitable for European installations where environmental and safety standards govern procurement decisions. Feature: 144 DIN place units and rated enclosure width of 750 mm. Business impact: Enables scalable configurations and easier inventory planning for panel builders. Application: Ideal for planned expansions and modular panel design in industrial automation environments.
Get a Quick Quote for a ABB 2CPX044100R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044100R9999?
Enquire Now
FAQs
Yes. The 2CPX044100R9999 is designed for CombiLine interior fitting modules, supporting 144 DIN place units within a 750 mm wide cabinet and using the WR mounting frame for straightforward integration with OX800 devices.
Key ratings include rated voltage up to 400 V, rated current up to 800 A, 4 poles (4P), and a busbar-ready, interior-fitting design suitable for modular distribution panels in industrial environments.
Best suited for modular distribution panels in machine building and process automation, where safe isolation of feeders and scalable protection for high-current feeders are required.
The unit complies with DIN EN 61439-3 and DIN EN 61439-2, accompanied by CE declarations and RoHS/REACH compliance, with WEEE considerations noted for the product category.
Its space-efficient interior design, 144 DIN places, and 750 mm width simplify planning and stocking, while regulatory compliance reduces risk and supports faster commissioning and future upgrades.
