2CPX044104R9999
Part Number: 2CPX044104R9999
Product Information
Extended Description

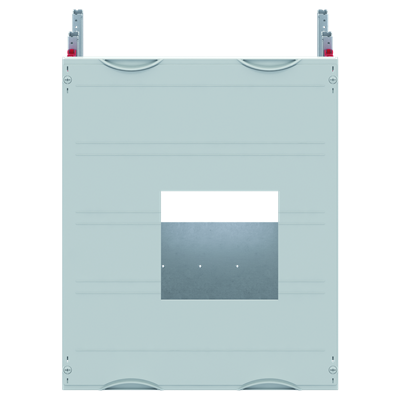

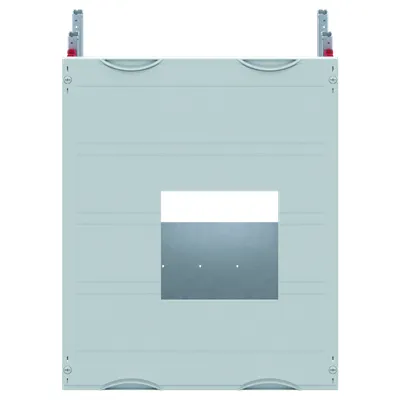

2CPX044104R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 500 mm, unequipped for the installation of 1 MCCB XT6, for busbar system 4-pole, rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
1000 A
Rated Operational Current (Ie)
1000 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Mounting Frame
WR
Device
XT6
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
96
Module Function
Main circuit breaker Tmax
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
2a0ad843-4b6d-4f6f-a7b9-2e545edc089e Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
8.519 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
8.86 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
