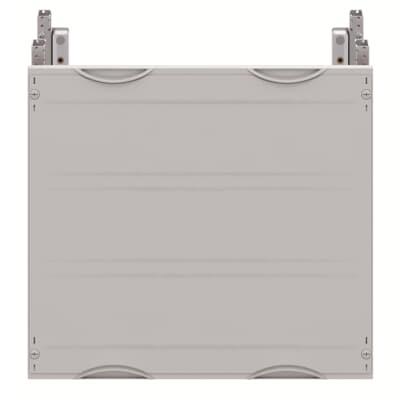

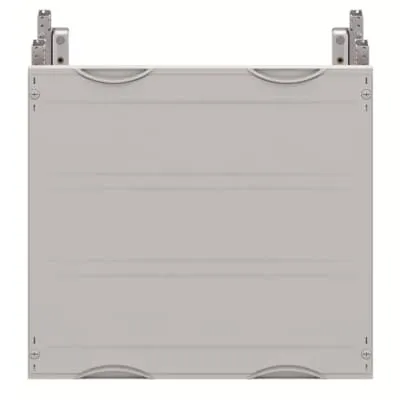

ABB 2CPX044116R9999 Interior fitting module - DIN61439-3
Part Number: 2CPX044116R9999
Quick Summary
2CPX044116R9999 interior fitting module optimizes modular busbar distribution for panel builders. Engineers often struggle with space constraints and precise N/PE busbar alignment in compact enclosures. It carries conformity to DIN EN 61439-3 and CE conformity, with RoHS and REACH declarations and SCIP registration for responsible sourcing. Aligned with ABB CombiLine, 72 DIN place units, and a 400 V operation, it delivers scalable power distribution for manufacturing and process industries. In addition, its horizontal busbar alignment and ZX563 holders streamline assembly, while the 1000 A rating supports high-demand systems. The robust light-gray plastic enclosure balances reliability with serviceability in demanding environments.
Product Information
Extended Description
2CPX044116R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, , usuable width of 500 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Mounting Frame
WR
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Accessories Available
Yes
DIN Place Units
72
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
fbced2f1-6ab8-4728-b65f-9aa51882ca44 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
2.614 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.719 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: N/PE busbar and terminals are integrated in a 72‑place DIN frame, enabling a 2P busbar system with a maximum 1000 A rating and a usable width of 500 mm. Business impact: reduces assembly steps, drives faster panel commissioning, and lowers field wiring errors, improving overall site uptime. Application: ideal for CombiLine modular distribution panels in high-current automation cells. Feature: Horizontal busbar alignment with ZX563 holders supports two copper busbars ordered separately. Business impact: ensures precise conductor spacing and easier maintenance access, reducing rework and service calls. Application: suitable for compact, high-density distribution enclosures in process automation. Feature: Durable light-gray enclosure (RAL 7035) with 90-degree closure and plastic covers. Business impact: enhances environmental protection against dust and impacts, extending component life and reducing replacement costs. Application: demanding factory floors and outdoor-rated installations where enclosure integrity matters. Feature: Full regulatory compliance including EU RoHS, REACH declarations, SCIP registration, and WEEE considerations. Business impact: simplifies procurement audits and supports regulatory-driven supply chains. Application: industries with strict material and sustainability requirements, such as automotive, chemical, and energy sectors. Feature: Built-in compatibility with CombiLine interior distribution concepts and mounting frame WR; 400 mm built-in depth and 72 DIN units enable straightforward expansion. Business impact: accelerates design-in and retrofit projects, minimizes change orders, and lowers lifecycle costs. Application: modular power distribution in new builds and plant upgrades across manufacturing environments.
Get a Quick Quote for a ABB 2CPX044116R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044116R9999?
Enquire Now
FAQs
This module uses a WR enclosure mounting frame and fits a 72‑DIN unit grid with a 450 mm height, 500 mm width, and 400 mm depth footprint. It supports horizontal busbar alignment with ZX563 holders and requires busbars to be ordered separately. Refer to mounting instructions ZX2720‑..25, ZX2740‑..45, ZX2760‑..61 for proper installation.
The unit is rated for up to 400 V and 1000 A, configured as a 2P enclosure. It accommodates N/PE busbars and terminals within a 72 DIN‑place framework, offering a robust, high-current distribution solution. Copper busbars must be ordered separately, and horizontal alignment ensures consistent conductor spacing.
Best suited for ABB CombiLine interior distribution panels in factory automation and process control environments. It provides dense 2-pole busbar wiring within a compact 450×500×400 mm envelope, supporting rapid deployment in high‑current control cabinets and scalable for future expansions without major restructuring.
The module complies with DIN EN 61439-3 and carries CE conformity, RoHS and REACH declarations, and SCIP registration. It also notes WEEE categorization as Product Not in WEEE Scope. These certifications assist procurement teams in regulatory audits and sustainability reporting.
By consolidating N/PE busbar and terminals into a single interior fitting module, maintenance visits are shorter, miswired connections are reduced, and field modifications are minimized. The 72‑DIN footprint supports predictable expansion, translating to lower lifecycle costs and faster ROI in automation and power distribution projects.
