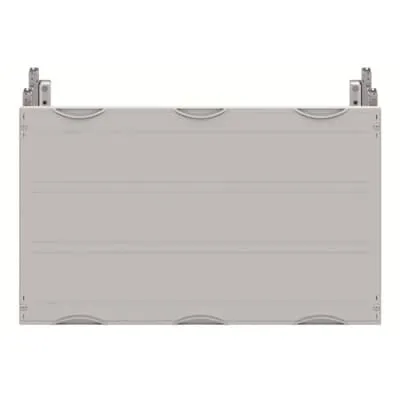

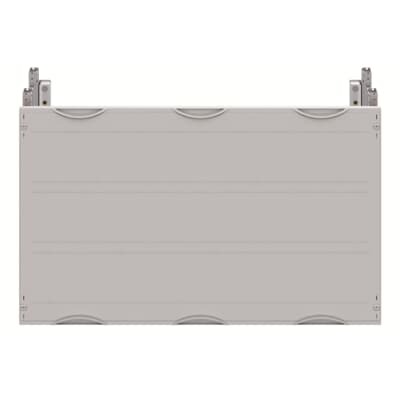

ABB 2CPX044117R9999 Interior fitting module - DIN EN61439-3
Part Number: 2CPX044117R9999
Quick Summary
ABB 2CPX044117R9999 interior fitting module is designed to support N/PE busbars in modular distribution panels. Engineers often struggle with misalignment and complex integration; this module simplifies mounting, alignment, and expansion. It carries CE conformity, RoHS compliance, and REACH declarations, plus DIN EN 61439-2/3 alignment for safe, compliant installations. These features support faster installation and reduced maintenance costs, while the module integrates with ABB CombiLine busbar systems for enhanced reliability. Designed for 750x450x400 mm cabinets with 108 DIN spaces and a 1000 A rating, it fits neatly into your existing cabinet architecture. Horizontal busbar alignment with ZX563 holders simplifies copper busbar installation and future expansion.
Product Information
Extended Description
2CPX044117R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, , usuable width of 750 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Mounting Frame
WR
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Accessories Available
Yes
DIN Place Units
108
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
1c40826b-7488-4eaa-b895-fb75c6d4b07a Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
3.821 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.974 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
The interior fitting module allocates a dedicated N/PE busbar and terminal area, supporting a 2P busbar system with horizontal alignment and ZX563 holders. This reduces miswiring risk, speeds assembly, and simplifies future expansions by letting you add extra copper sections without reworking the entire panel. In practice, it translates to shorter installation windows and lower commissioning costs in large power distribution rooms. With 108 DIN place units and a usable width of 750 mm, the module delivers predictable spacing for single- and multi-connection terminals, improving traceability and maintenance planning in high-mix environments. Rated for 400 V and a maximum current of 1000 A, it supports demanding feeder arrangements; 2P configuration aligns with common ABB CombiLine layouts, while horizontal orientation optimizes space and reduces congestion. The light-grey enclosure (RAL 7035) and closed 90-degree closure provide durable protection; 400 mm built-in depth matches typical cabinets and simplifies retrofits. EU RoHS, REACH declarations, CE conformity, and SCIP listing streamline supplier audits and ensure durable, future-proof operation of the distribution system. From an installation perspective, the module fits ABB’s CombiLine ecosystem and standard 750x450x400 mm cabinets, with easy busbar mounting and expansion readiness.
Get a Quick Quote for a ABB 2CPX044117R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044117R9999?
Enquire Now
FAQs
The 2CPX044117R9999 is designed for ABB CombiLine systems and fits standard 750x450x400 mm cabinets. It provides 108 DIN spaces and 2P busbar/terminal support with horizontal busbar alignment, making it straightforward to integrate into existing layouts and cabinet footprints without extensive rework.
Key specs include a maximum operating voltage of 400 V, a rated current of up to 1000 A, a 2P configuration, and 108 DIN place units. It is designed for N/PE busbars and terminals, with a 750 mm width, 450 mm height, and 400 mm depth enclosure suitable for modular distribution panels.
Yes. With a rated current of 1000 A and support for copper busbars, the module is engineered for demanding feeder layouts. Its horizontal alignment and ZX563 busbar holders help prevent congestion, enabling reliable operation in high-load industrial installations while maintaining serviceability.
The module carries CE conformity, RoHS compliance, REACH declarations, and SCIP listing, supported by DIN EN 61439-2/61439-3 standards. These attestations simplify audits, ensure regulatory compliance, and align with lifecycle and sustainability programs in industrial procurement.
Plan for horizontal busbar installation using ZX563 holders, order copper busbars separately, and align with the 750x450x400 mm cabinet depth. The module’s 108 DIN spaces enable scalable expansion, reducing later retrofit costs and enabling faster commissioning in multi-line power distribution architectures.
