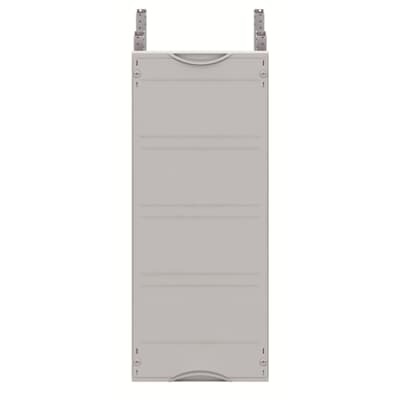

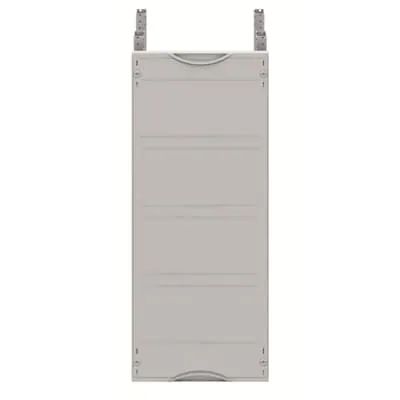

ABB 2CPX044118R9999 Interior fitting module - DIN EN 61439
Part Number: 2CPX044118R9999
Quick Summary
2CPX044118R9999 interior fitting module enables efficient N/PE busbar integration in 2-pole ABB CombiLine panels. Engineers rely on modularity to save time and space, and this module addresses those needs by offering a compact footprint within a 600 mm grid and 48 DIN places. A common challenge when expanding distribution cabinets is maintaining correct busbar alignment and avoiding wiring errors; this module provides horizontal busbar alignment and ZX563 holders to streamline installation. It carries essential certifications and declarations, including CE conformity, RoHS compliance under EU Directive 2011/65/EU, and REACH compliance, helping future-proof your compliance profile. By integrating with standard CombiLine components, it supports scalable installations, reduces assembly time, and enables up-front planning for automation projects across industrial environments.
Product Information
Extended Description
2CPX044118R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, , usuable width of 250 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Mounting Frame
WR
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
48
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
4165bac6-d0cd-4c8f-abc0-ff0e53987f27 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
1
Product Net Weight
1.967 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.046 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: N/PE busbar and terminals integrated in a 2-pole design with 48 DIN place units. Benefit: simplifies cabinet layout and wiring accuracy, enabling faster panel assembly and reduced risk of misconnections in high-current distributions. Application: ideal for CombiLine distribution panels in industrial automation and machine control environments. Long-tail keywords: CombiLine interior fitting module, N/PE busbar module, 2-pole busbar system, modular distribution panel, high-current panel assembly. Feature: Horizontal busbar alignment with ZX563 busbar holders and horizontal mounting. Benefit: improves installation precision and reduces rework by ensuring stable, repeatable busbar positioning. Application: critical for durable power distribution in service corridors and factory floors. Long-tail keywords: busbar alignment, ZX563 holders, horizontal busbar system, panel alignment accuracy. Feature: 600 mm grid unit, 250 mm panel width, 48 DIN places, and 400 mm built-in depth. Benefit: supports dense, scalable layouts while preserving clear access for maintenance and upgrades. Application: scalable energy distribution in compact switchgear enclosures. Long-tail keywords: DIN place density, 600 mm grid, panel width 250 mm, built-in depth 400 mm, compact distribution panel. Feature: 2 Cu busbar capability with busbars ordered separately. Benefit: offers flexible conductor choices and future-proofing for evolving load profiles without replacing the module. Application: adaptable power routing in evolving production lines. Long-tail keywords: Cu busbars, busbar compatibility, flexible conductor options. Feature: RoHS, REACH, SCIP, and CE declarations with DIN EN 61439-2/3 compliance. Benefit: ensures regulatory compliance, traceability, and environmental responsibility, reducing risk during audits and customer approvals. Application: procurement and compliance workflows for industrial cabinets and panel assemblies. Long-tail keywords: DIN EN 61439-2/3, RoHS compliance, REACH declaration, SCIP code, CE conformity.
Get a Quick Quote for a ABB 2CPX044118R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044118R9999?
Enquire Now
FAQs
The module is designed for CombiLine interior fitting panels with a 600 mm grid and 250 mm panel width, offering 48 DIN places and horizontal busbar alignment. It supports up to 2 Cu busbars (ordered separately) and uses ZX563 busbar holders to simplify installation. For best results, pair with ZX2720-..25 mounting instructions for precise assembly.
Key specs include a rated current of 1000 A, rated operational voltage up to 400 V, and a 2P (two-pole) configuration. The enclosure is WR-mount, interior fitting type, with a built-in depth of 400 mm and a usable width of 250 mm, designed for 48 DIN units in a 600 mm grid.
The module complies with DIN EN 61439-2 and DIN EN 61439-3, supported by CE conformity, RoHS (Directive 2011/65/EU and 2015/863), REACH declarations, and SCIP registration. It is categorized under WEEE as Product Not in WEEE Scope. These certifications help with regulatory audits and product stewardship in regulated markets.
Benefits include horizontal busbar alignment for accurate wiring, 48 DIN placement for dense layouts, and a compact 250 × 600 × 400 mm footprint. The 400 mm built-in depth aligns with standard cabinet depth, while modular busbar components reduce rework. Compatibility with existing CombiLine components accelerates project timelines.
The module enables modular expansion without full cabinet replacement, reducing downtime during upgrades. Its robust compliance framework minimizes audit risk, and the durable, busbar-friendly design lowers maintenance costs by reducing wiring errors. Over time, this translates to faster changeouts, predictable upgrades, and improved overall equipment effectiveness (OEE).
