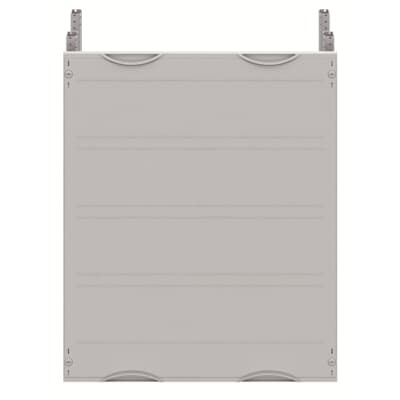

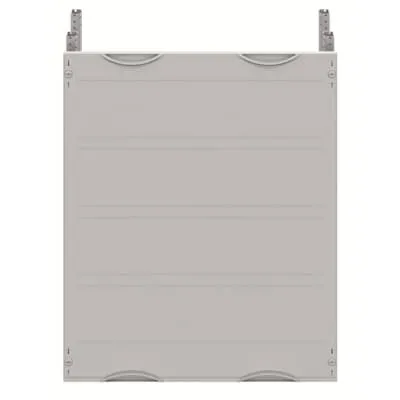

ABB 2CPX044119R9999 Interior fitting module - DIN EN 61439
Part Number: 2CPX044119R9999
Quick Summary
ABB 2CPX044119R9999 interior fitting module provides modular N/PE busbar and terminals for CombiLine distribution panels. Engineers face space constraints and wiring complexities in compact switchgear; this module simplifies layout and reduces assembly time. It aligns with key certifications such as DIN EN 61439-2/3, CE conformity, and RoHS compliance to streamline approvals. Designed for ABB CombiLine installations and 2-pole busbar systems, it supports up to 1000 A while keeping installation straightforward and cost-efficient. The module has 96 DIN place units and a footprint of 500x600x400 mm to enable flexible panel designs for new builds and retrofits. With clear busbar alignment and ZX563 holders (busbars ordered separately), maintenance planning is easier and downtime reduced.
Product Information
Extended Description
2CPX044119R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 500 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Mounting Frame
WR
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
96
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
51264912-fe1e-4b49-97fc-873d2eba024d Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
3.372 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.507 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module for CombiLine with integrated N/PE busbar and terminals. Business Impact: enables cleaner panel architecture, reduces cross-wiring and wiring errors. Application: ideal for 96 DIN unit cabinets in industrial control and distribution panels. Feature: Rated operational voltage 400 V; rated current 1000 A; 2 poles. Business Impact: supports high-power distribution and future expansion without rework. Application: suitable for grid units up to 600 mm wide and 400 mm deep layouts. Feature: Enclosure mounting frame WR with a plastic cover and 90-degree closure in light grey. Business Impact: robust, secure enclosure that simplifies service and maintenance. Application: fits interior cabinet environments and reduces accidental contact risk. Feature: DIN Place Units 96, module function for N/PE busbar and terminals. Business Impact: modular scalability and straightforward assembly with standardized spacing. Application: ideal for CombiLine configurations and busbar-driven distribution. Feature: RoHS and REACH compliance, CE declaration, and WEEE alignment. Business Impact: regulatory risk reduction and traceability for audits and product lifecycle management. Application: facilitates compliance during installation, upgrades, and maintenance across manufacturing facilities. Industry context: the combination of modular architecture, clear busbar alignment, and standardized components supports faster project delivery, easier spare parts planning, and lower total cost of ownership in medium to large electrical installations.
Get a Quick Quote for a ABB 2CPX044119R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044119R9999?
Enquire Now
FAQs
This interior fitting module is designed for CombiLine configurations and supports N/PE busbars with 2 poles. It provides 96 DIN place units in a 500x600x400 mm footprint, and uses ZX563 busbar holders (busbars ordered separately) to ensure precise alignment and straightforward installation within ABB panel systems.
Key specs include a rated operational voltage of 400 V, operational voltage of 400 V, rated current up to 1000 A, and a 2P configuration. It is built for interior mounting with the WR enclosure frame and supports 96 DIN unit spacing for scalable distribution within large panels.
The 2CPX044119R9999 is an interior fitting module intended for cabinet-based CombiLine installations, not a DIN rail mount. It uses an enclosure frame WR and is designed to live inside an electrical cabinet, enabling controlled busbar distribution and safer, neatly organized wiring.
The module complies with DIN EN 61439-2 and 61439-3, carries CE conformity, and aligns with RoHS and REACH declarations. WEEE considerations show Product Not in WEEE Scope. It supports regulatory traceability through SCIP and related declarations.
Benefits include reduced installation time due to standardized spacing and busbar alignment, lower risk of wiring errors, and easier maintenance with clearly organized N/PE busbar routing. Regulatory compliance reduces audit risk, while scalable 96 DIN units support future expansions without major panel redesigns.
